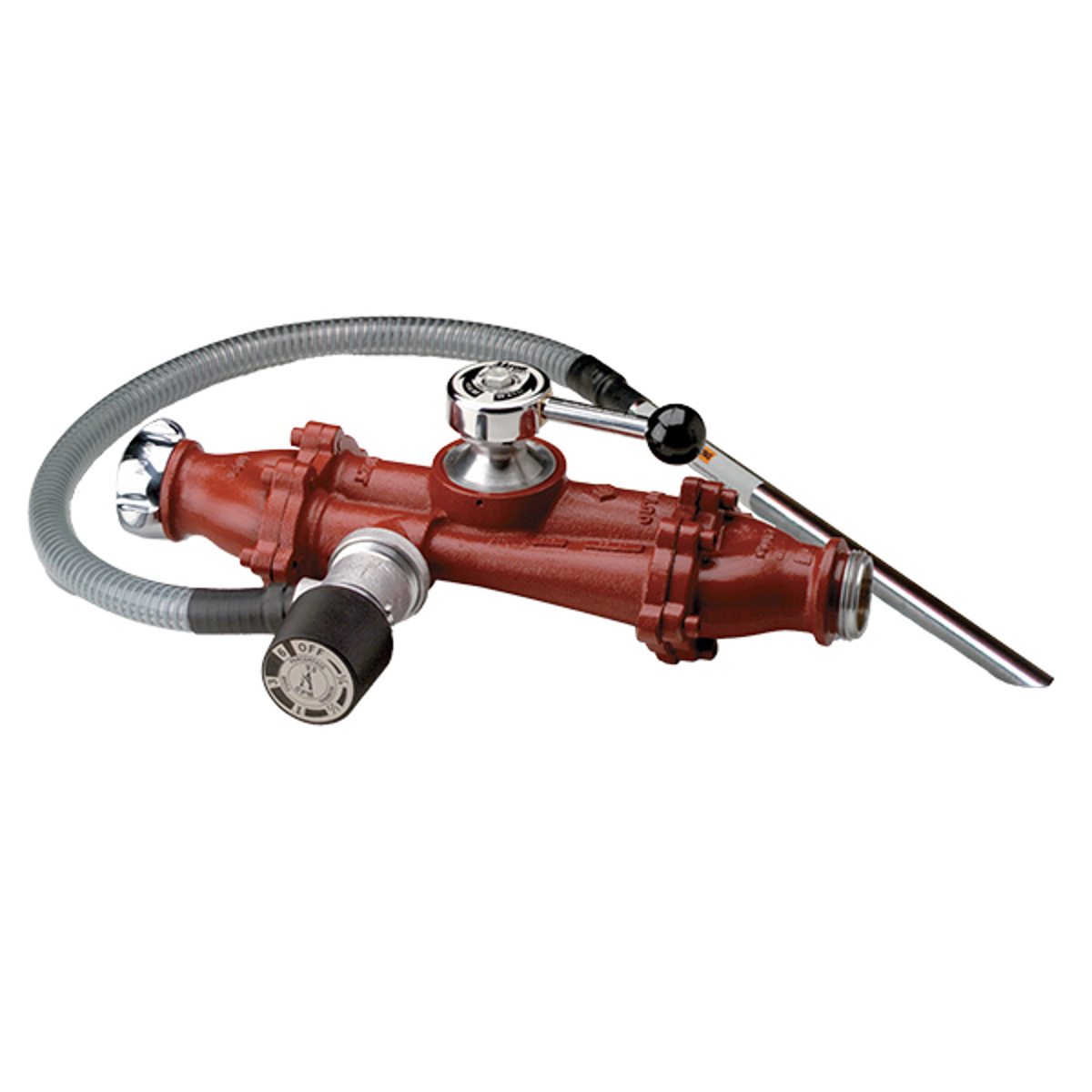

The Akron By-Pass Eductor utilize a built-in by-pass chamber, allowing the operator to change from water to foam without shutting down and feature a large, easy to read, and removable metering dial with infinite settings between 0% and 6%. The Eductors are rated to flow at 200 psi (14 bar) inlet pressure and work effectively with nozzles rated from 50 to 100 psi (3 to 7 bar).

Features

• Built-in by-pass chamber, allows the operator to change from water to foam without shutting down
• Large, easy to read, and removable metering dial with infinite settings between 0% and 6%. Detents at 1/4, 1/2, 1, 3 and 6%
• Rated to 60 gpm (230 lpm) at 200 psi (14 bar) inlet pressure
• Works effectively with nozzles rated from 50 to 100 psi (3 to 7 bar)
• 1 1/2" (38 mm) or 2 1/2" (65 mm) swivel inlet x 1 1/2" (38mm) male
