Engine Specifications

• D902 Kubota liquid cooled engine
• Alternator capacvity: 12V-40A (480 W)
• 3-cylinder, 4-stroke diesel engine
• Electric start

Included Accessories and Control Panel

• Quick connect for 12-V battery
• Engine start/stop switch
• Throttle control lever
• Operating panel light
• Pilot lights
• Pressure gauge
• Vacuum pressure gauge
• Priming button

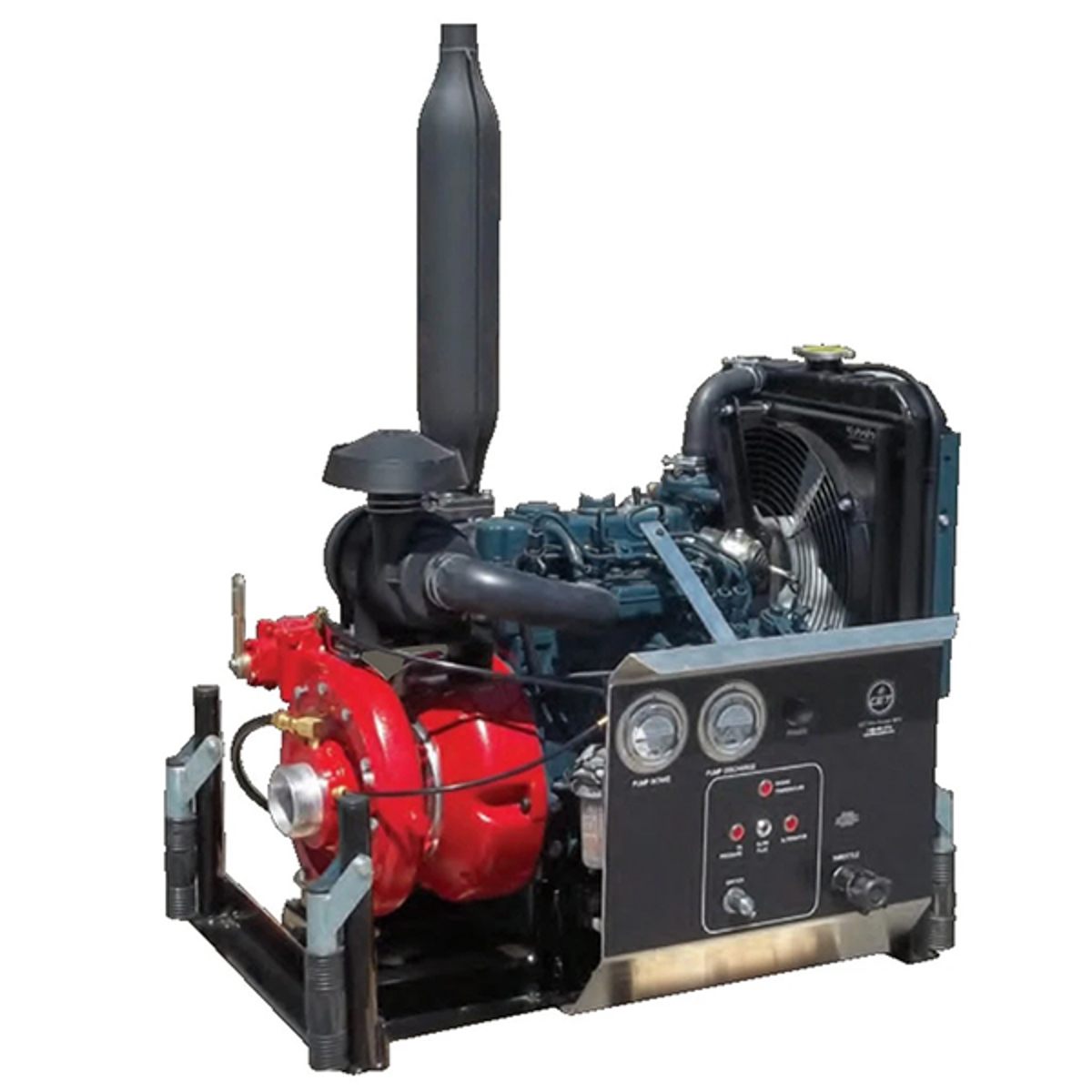

Pump Unit Specifications

• C.E.T. single stage centrifugal pump
• Pump body made from high resistance aluminum alloy
• Bronze impellers
• Mechanical shaft seal
• Stainless steel pump shaft
• Electric priming system, guaranteed up to 20' (6 meter) lift
• One 1 1/2" (38 mm) NPT-M delivery outlet flange
• One 2 1/2" (65 mm) suction inlet
• Dimensions: 29 1/2" Length by 26" Width by 33" Height
• Weight: 308 lbs
