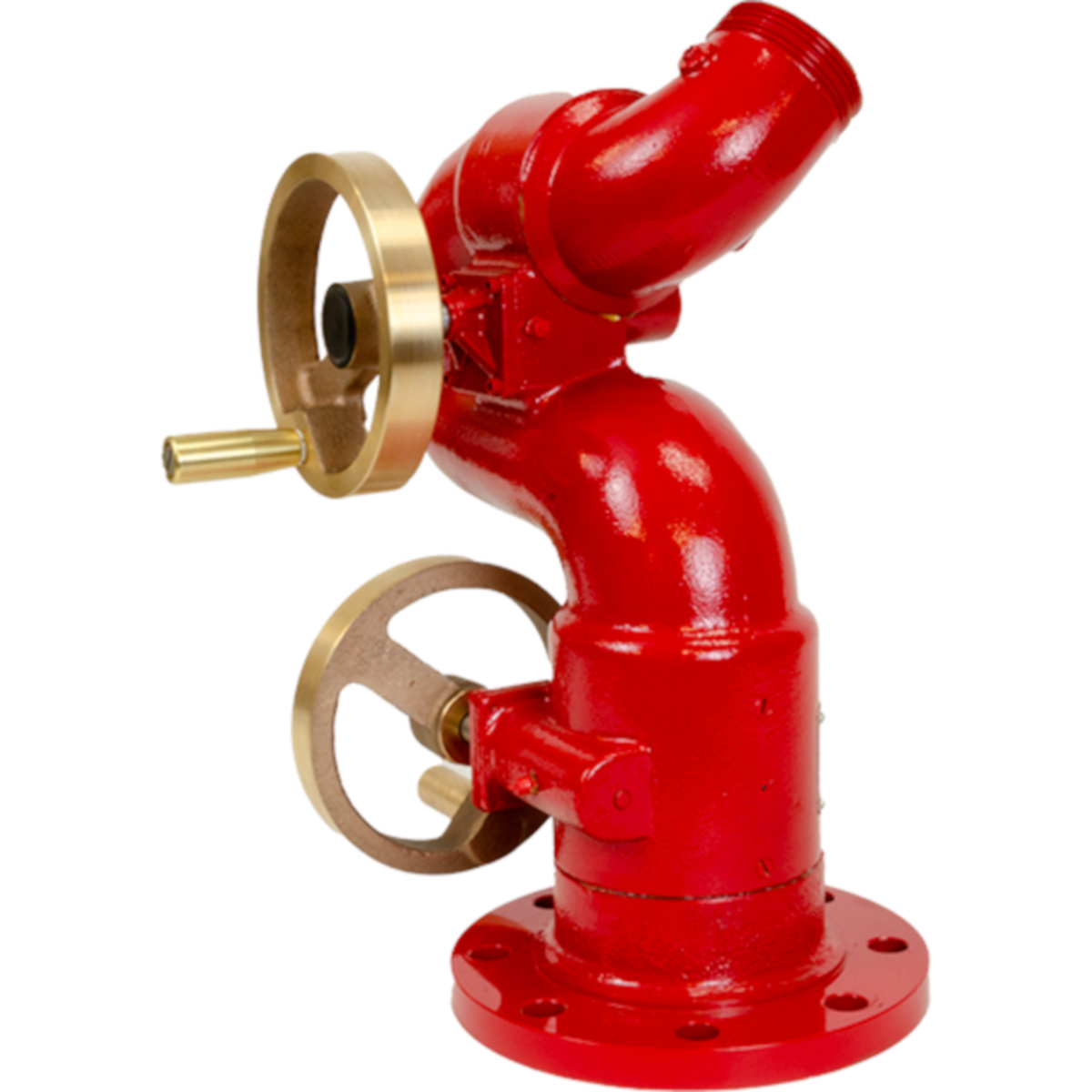

Elkhart Copperhead Monitor 3" 150 lb Flange Tiller Brass

Elkhart Copperhead Monitor 3" 150 lb Flange Tiller Brass (8593-03-294-11REV.06)
_
Copperhead® manual monitors are rugged maintenance-free monitors designed for corrosive and non-corrosive environment applications. Each configuration of the Copperhead monitor has extremely low friction loss and, in conjunction with advanced Elkhart Brass nozzle technology, ensures optimal flow efficiency and stream reach. Copperhead monitors are FM Approved to the current edition of FM 1421 standard.
8593-03 Copperhead Monitor Only
Dual Handwheel Control
FM Approved
Rugged Brass Construction
4.0″ Flange
2.5″ NHT Outlet

Features:
1250 gpm (4750 LPM) maximum flow rate
200 psi (14 BAR) maximum operating pressure
-45° to +90° (135°) vertical travel range
360° continuous horizontal travel range
Full 3″ unobstructed waterway with cast-in vanes to ensure superior stream quality
Positive brass T-handle locks furnished for both vertical and horizontal movements
Tiller bar and dual handwheel manual control options
FM Approved for use with Elkhart Brass WPO-2000™ enables automation of the horizontal oscillation without the need of electric control unit
Rugged brass construction for use in corrosive environments and seawater applications
