Seminole City Fire Department (FL)

Call now (800) 628-6233 (x155) or email apparatussales@nafeco.com for more information.

Type	Pumper
Body	3/16” Formed Aluminum FX Body Hosebed Storage for 200’ of 2.5” Double Jacket Hose 400’ of 3” Double Jacket Hose 1000’ of 5” Rubber Hose Full Depth Compartments, Both Sides Through the Tank Ladder Storage Surf Board Storage Area Rear Access Ladder Wheel Well SCBA Bottle Storage
Chassis	Rosenbauer Commander Cab 70” Cab Length with 11” Raised Roof 18” Front Bumper Extension with Hose Well Compartment Storage Compartment Rear of Engine Tunnel Interior Compartment over Rear Crew Seats Driver and Officer’s Side EMS Compartments with Interior and Exterior Access Barrier Height Doors Cab Seating for Six (6) Personnel Hendrickson SteerTek Front Axle and Suspension Electronic Stability Control Aluminum Wheels Double Frame Rails
Dimensions	Overall Height: 118” Overall Length: 393” Wheelbase: 198”
Drive Train	Cummins L9 Diesel Engine 380 HP Allison 3000 EVS Automatic Transmission
Electrical	P2P (Hardwired) 12VDC Electrical System Federal Q2B Siren, Pedestal Mounted Whelen LED Warning Light Package Fire Tech 72” LED Brow Light Fire Research LED Scene Light Package WB/AM/FM/CD Radio with (4) Speakers HAAS Alert System 360° Camera System Battery Charger with Super Auto Eject
Pump and Tank	Waterous Single Stage Midship Pump 1250 GPM Backboard Storage Module over Pump Module Pump Panel Running Board Hose Wells 500 Gallons Poly Water Tank

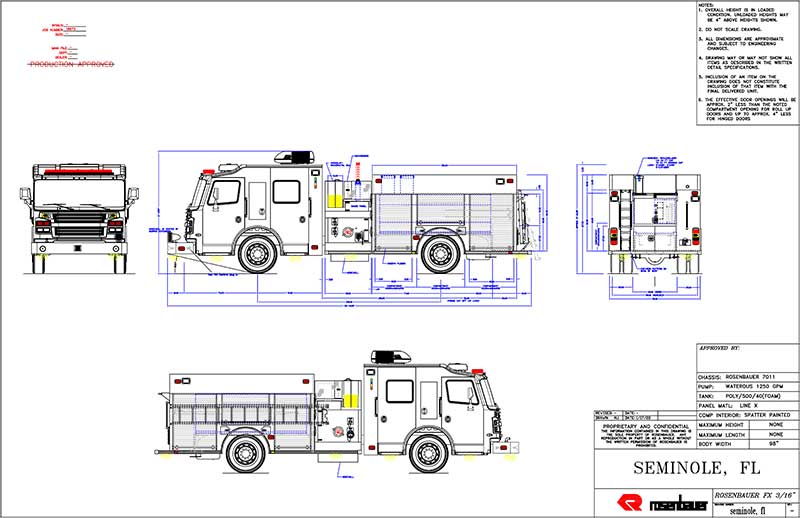

Schematic Drawing
