Draeger Tube, Carbon Disulfide 30/A 32-3200ppm, Box of 10
DRAEGER SAFETY INC.
/ Model #CH23201
Details

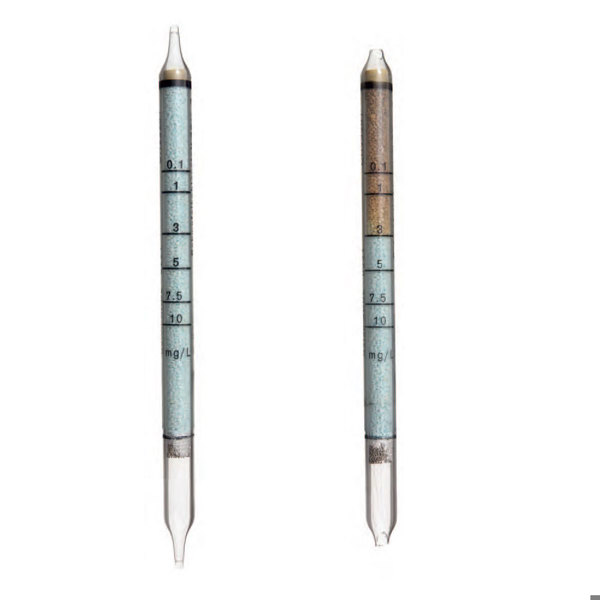

Draeger Tube - Carbon Disulfide 30/a
Order No. CH 23 201
| Application Range | |
| Standard Measuring Range | 0.1 to 10 mg/L |
| Number of Strokes n: | 6 |
| Time for Measurement: | approx. 1 minute |
| Standard Deviation: | ± 15 to 20% |
| Color Change: | pale blue to brown |
| Ambient Operating Conditions | |
| Temperature: | 0 to 40° C ~ 32 to 104° F |
| Absolute Humidity: | < 30 mg H2O / L |
| Reaction Principle | |
| CS2 + 4 NHR2 + Cu2 Cu(SCSNR2)2 + 2 NH2R2+ | |
| Cross Sensitivity | |
| Hydrogen sulfide is indicated, producing a pale green discoloration. It is impossible to measure carbon disulfide in the presence of hydrogen sulfide. | |
