Alligator Point Fire Department (FL) #C0202656

Call now (800) 628-6233 (x155) or email NAFECO Apparatus Sales for more information.

Type	Tanker
Chassis	Freightliner M2 106 Plus Aluminum Wheels Power Windows and Door Locks
Engine	Cummins L9, 360 HP Compression (Jake) Brake
Transmission	Allison 3000 EVS
Seating	Seats Inc. 911 Universal Air Ride Driver's Seat Seats Inc. 911 Universal Non-Suspension Officer's Seat
Body	Rosenbauer FX, 1/8" Aluminum Tandem Axle Tanker 102" Overall Width 14" Deep Rear Step Exterior Ladder Mounting Suction Hose Storage Below the Water Tank Manual Folding Tank Rack, Officer's Side, Enclosed Rosenbauer EZ Climb Rear Access Ladder Wheel Well Storage for Six (6) SCBA Spare Bottles and Two (2) Extinguishers External Pike Pole Storage
Electrical	20 Amp Super Auto Eject Battery Jump Start Lugs, Studs, and Caps Kussmaul Battery Charger and Air Compressor System 120V, 20 Amp Straight Blade, Duplex Receptacles
Pump	Hale DSD, Single Stage, Midship 1250 GPM FRC Pump Boss Max Pressure Governor System Hale TRV Cooling System
Water	2500 Gallons 2-1/2" Rear Direct Tank Fill Rear Dump, Electric, Swivel Dump
Additional or Special Options	Federal Signal Q2B Siren Brow Mount LED Lightbar ASA Color Back-Up Camera System Air Inlet and Outlet, Driver's Step Whelen PS TANK2 Water Level Gauge System, Front and Rear Body Whelen LED Warning Light Package Fire Tech Guardian Elite Surface Mount LED Scene Light Package
Dimensions	Overall Length: 33'-5.45" Overall Height: 9'-5" Wheelbase: 238"

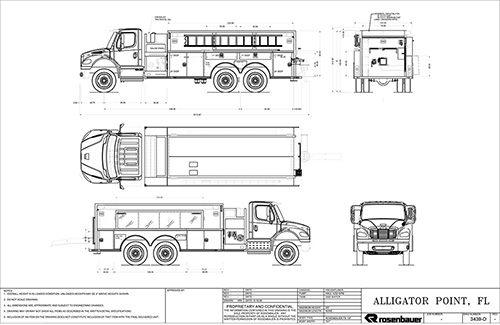

Schematic Drawing
