Athens-Clarke County Fire Department, GA #16006-#16009

Call now (800) 628-6233 (x155) or email NAFECO Apparatus Sales for more information.
Athens-Clarke County Fire Department, GA #16006-#16009
Athens-ClarkeCoGA 16006-16009 DSC 1063 1200x1200
Athens-ClarkeCoGA 16006-16009 DSC 1075 1200x1200
Athens-ClarkeCoGA 16006-16009 DSC 1093 1200x1200

Specifications

Type Pumper
Chassis
  • Rosenbauer Commander
  • 60" Cab Length
  • Flat Roof
  • Hendrickson FIREMAXX EX Air 27,000# Low Profile Rear Suspension
  • Aluminum Wheels
  • Full Length Cab Entry Doors
  • Power Windows
  • Keyless Entry System
  • Hendrickson SteerTek 20,000# Front Axle
  • Electronic Stability Control
  • Double Frame Rails
  • HAAS Alert System
Engine
  • Cummins L9, 450 HP
  • Auxiliary Engine Compression (JAKE) Brake
Transmission
  • Allison 3000 EVS
Seating
  • 911 Seats Inc. XL Series
  • --Driver 4-Way Air
  • --Officer 4-Way Air SCBA
  • --Three (3) Forward Facing Crew, SCBA, Flip-Up
  • --IMMI Smart Dock SCBA Brackets
Body
  • Backboard Storage in Hosebed
  • Wheel Well Storage for Two (2) Fire Extinguishers and Five (5) SCBA Spare Bottles
  • Rosenbauer EXT Aluminum
  • External Ladder and Pike Pole Storage
  • Lowered Hose Bed
Electrical
  • --Kubota D1105-BG EPA and CARB Rated Diesel Engine
  • --Transfer Switch
  • Green Star Diesel Auxiliary Power Unit
  • Weldon VMux Multiplex Electrical System
  • VMux Door Open Isolation System, Body Compartment Doors
  • 20 Amp Super Auto Eject
  • Kussmaul Battery Charger and Air Compressor System
  • 120V, 20 Amp, Straight Blade Duplex Receptacles
  • 120V, 15 Amp 4-Plug Strip Receptacle
Pump
  • Hale TPM Relief Valve Package
  • 5" Front Intake
  • 2-1/2" Auxiliary Intake, Officer's Side
  • Front Hosebed Discharge
  • Deck Gun Discharge
  • Booster Reel, Rear Step Compartment
  • Whelen PS TANK2 LED Water Level Gauge, Front Body Corners, Rear Body Panel
  • Federal Q2B Controls on Pump Panel
  • Running Board Hose Well, Each Side
  • Rosenbauer N, Midship, PTO
  • 1250 GPM
Water
  • 500 Gallons
  • "L" Tank
Additional or Special Options
  • Whelen Red/White LED Ground Lights Package
  • Fire Tech Guardian Elite LED Surface Mount Scene Light Package
  • LED Traffic Arrow
  • Fire Tech 72" LED Brow Light
  • Three (3) Camera System
  • Whelen LED Warning Light Package
  • Bumper Tail Cornering Lights
  • 18" Front Bumper Extension with Center Hosewell and Front Discharge
  • Rosenbauer CleanAir Cab Recirculation Air Scrubber
  • Cowl Mount Bell with Electronic Control

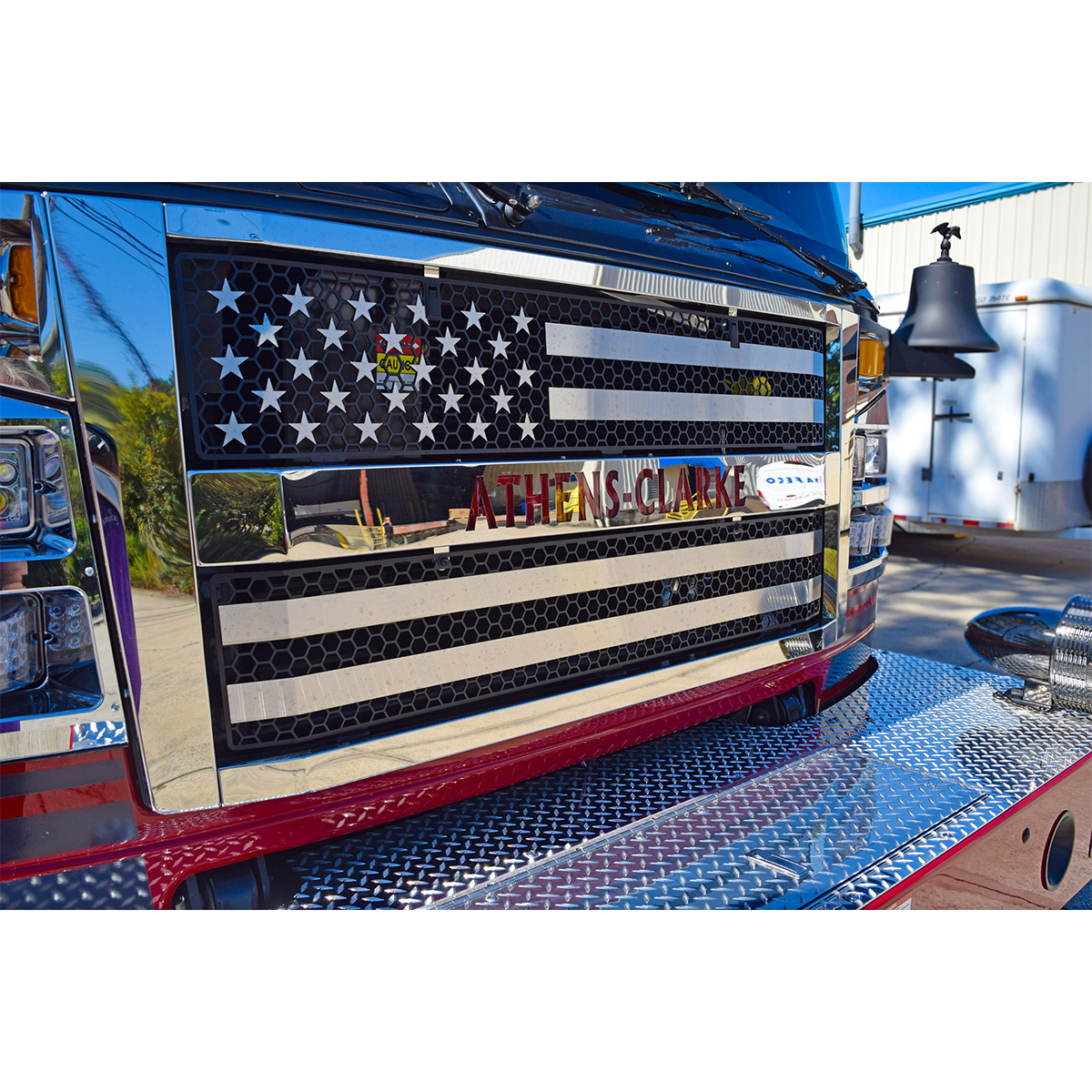

  • Front Grille with Custom Backlit Name and American Flag Inlay
  • Exterior Grab Handles with Red LED Lighting
  • Officer's Side EMS Compartment with Interior and Exterior Access
  • Driver's Side EMS Compartment with Interior and Exterior Access
  • Federal Signal Q2B Siren
  • FireCom Wireless Intercom System
Dimensions
  • Overall Length: 397" (33'-1")
  • Overall Height: 112"
Schematic Drawing View Schematic Drawing
