Brookhaven Fire Department, MS 7714

Call now (800) 628-6233 (x155) or email NAFECO Apparatus Sales for more information.
Brookhaven Fire Department, MS 7714

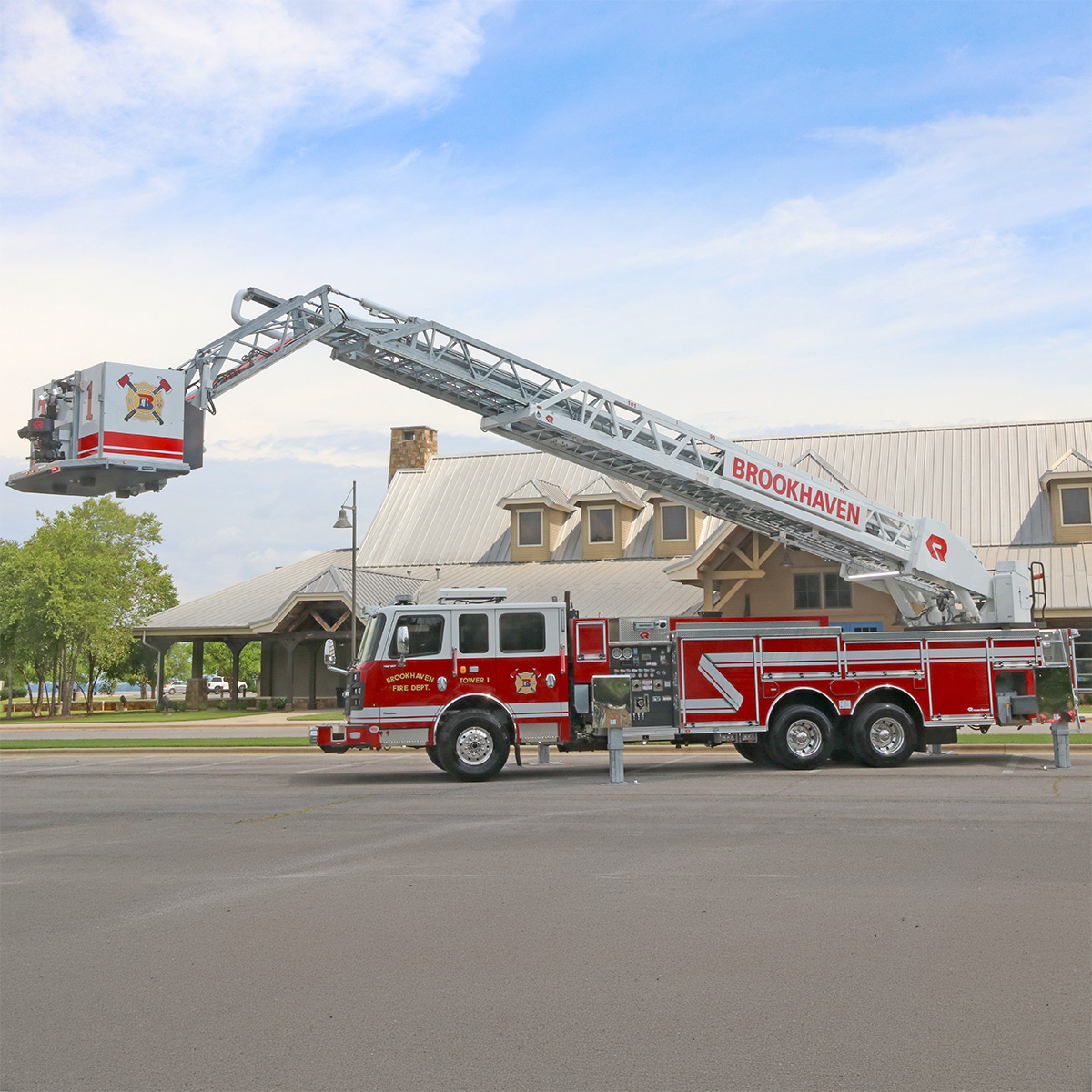

BrookhavenMS 7714 IMG 0020 1200x1200

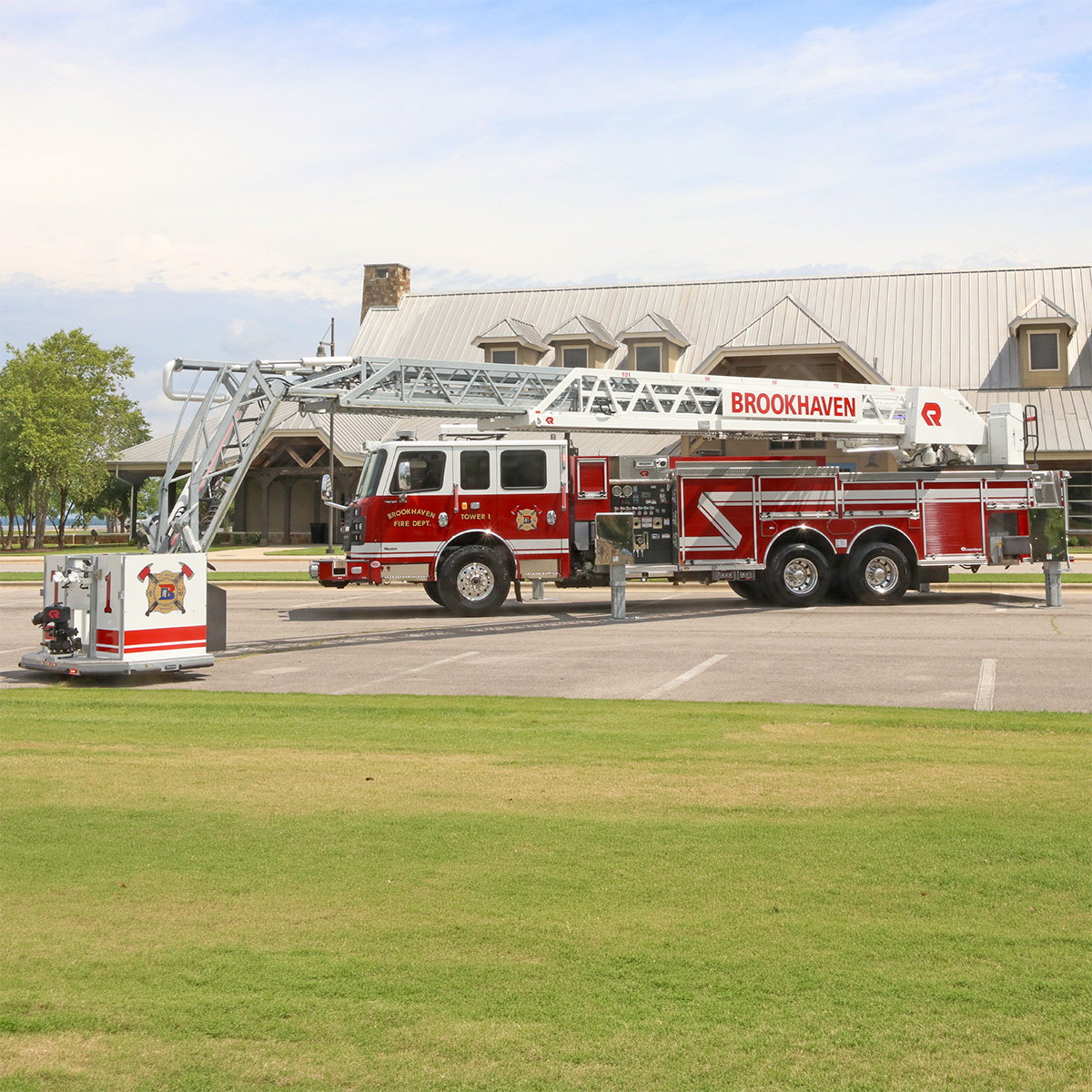

BrookhavenMS 7714 IMG 0025 1200x1200

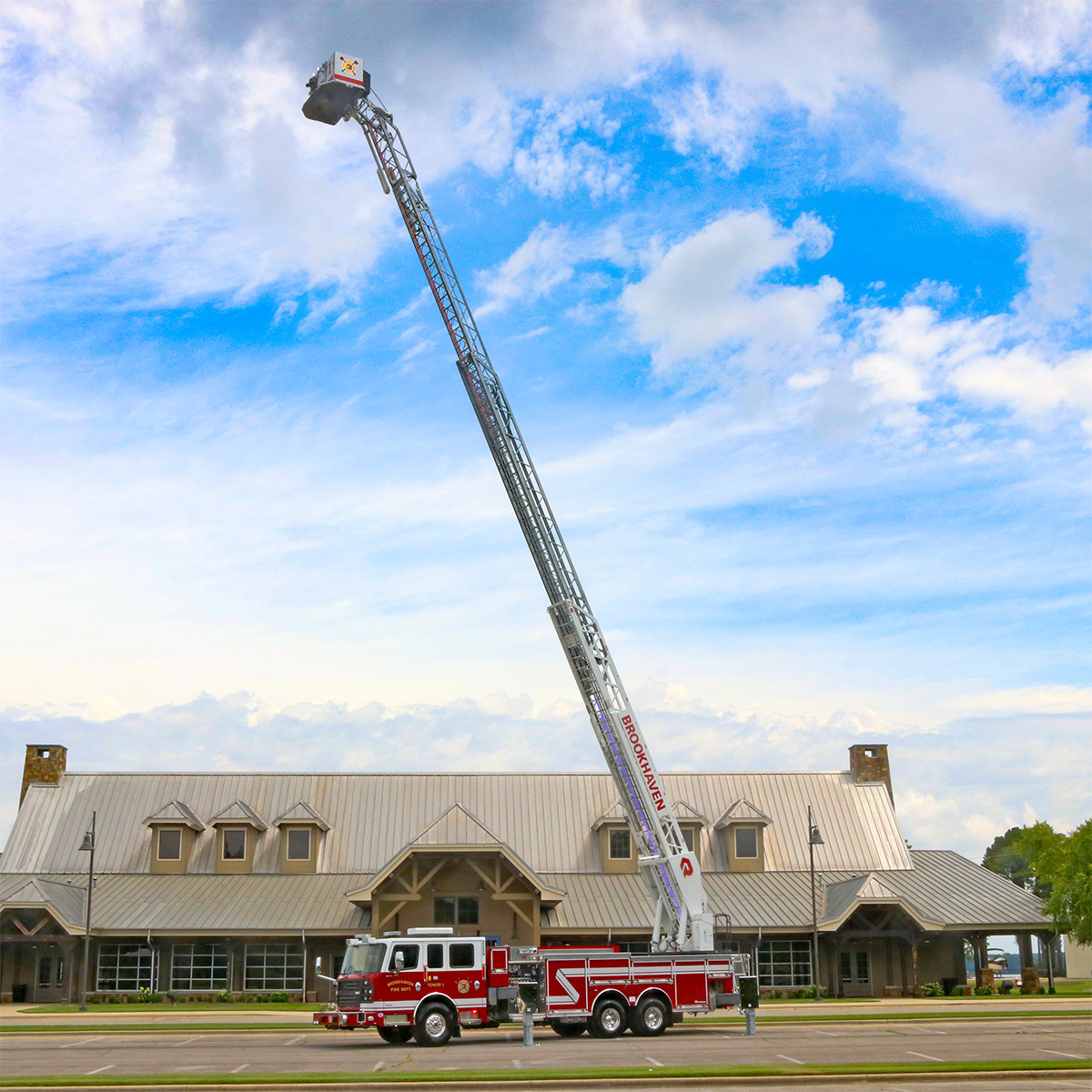

BrookhavenMS 7714 IMG 0046 1200x1200

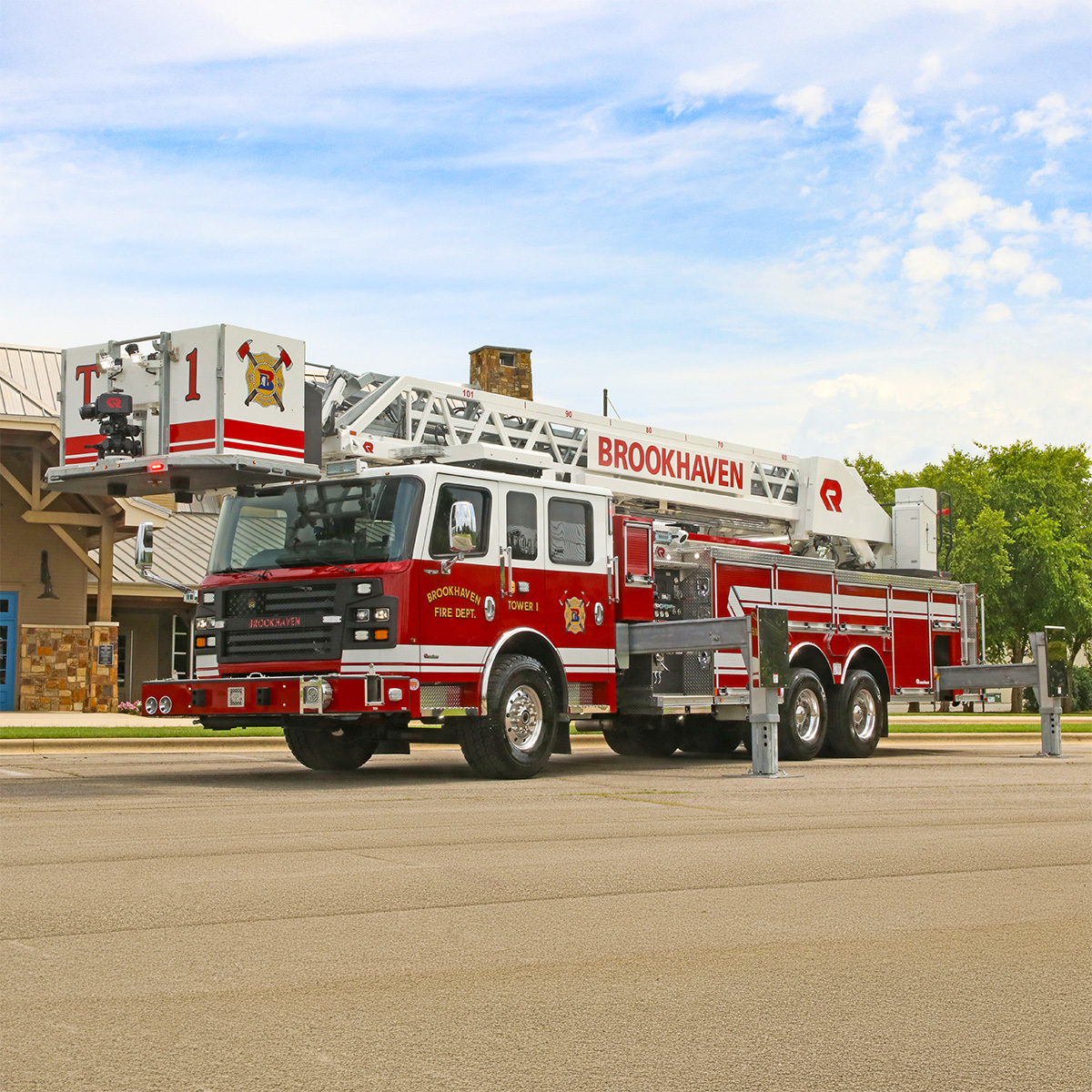

BrookhavenMS 7714 IMG 0060 1200x1200

Specifications

Type Aerial
Chassis
  • Rosenbauer Commander
  • 60" Cab Length
  • Flat Roof
  • Barrier Height Doors
  • Power Windows
  • Hendrickson SteerTek 24,000# Front Axle
  • Grab Rails with Red LED Lighting
  • LineX Black Grille with Backlit Name and American Flag Inlay
  • Meritor 63,000# Rear Tandem Axle
  • Electronic Stability Control
  • Aluminum Wheels
  • Triple Channel Frame Rails
Engine
  • Cummins X15, 565 HP
  • Engine Compression (Jake) Brake
Transmission
  • Allison 4000 EVS
Seating
  • Seats Inc. XL Series--
  • --Fixed SCBA Officer
  • --Two (2) Forward Facing, Center, Crew
  • IMMI Smart Dock SCBA Brackets
  • --Driver 10-Way Electric
Body
  • Wheel Well Storage for Seven (7) SCBA Spare Bottles
  • 101' 3-Section Rear Mount Articulating Platform
  • Galvanized Torque Box
  • 10-5/8' Jib Boom
  • Smart Aerial Control, Turntable, Command Pedestal
  • (2) Front, (2) Rear Out-Down Outriggers
  • 1500 GPM Platform Waterway
  • Hot Dipped Galvanized, Steel Ladder
  • Rosenbauer Rear Mount Platform, Tandem Axle, 3/16" Formed Aluminum
  • 102" Overall Width
  • Right Hand Side Load Hosebed with Lift-Up Door
  • Storage for 1000' of 5" Hose
  • Torque Box Ladder Storage
  • Rear Bumper Pull-Out Hose Loading Step
Electrical
  • Load Management System
  • Kussmaul Battery Charger/Compressor System with Super Auto Eject
Pump
  • Rosenbauer N80, NP, 2000 GPM, Midship, Splitshaft, Bronze
  • Automatic Air Primer
  • 2-1/2" Auxiliary Intake, Officer's Side
  • 1-1/2" Front Bumper Crosslay
  • Running Board Hose Wells, Each Side
  • Air Horn Button on Pump Panel
Water
  • 500 Gallons
Additional or Special Options
  • AM/FM/WB/Bluetooth Radio
  • FRC Spectra LED Brow Light
  • Whelen LED Warning Light Package
  • Whelen LED Traffic Arrow
  • HAAS Alert System
  • Federal Q2B Siren
  • Zone Defense Rear Camera System
  • Fire Research/Whelen LED Surface Mount Scene Lighting
  • 18" Front Bumper Extension with Crosslays
Dimensions
  • Overall Length: 47'-9.50"
  • Overall Height: 12'-0.50"
  • Wheelbase: 244"
Schematic Drawing View Schematic Drawing
