Hardin Fire Department - Pumper (TN)

Call now (800) 628-6233 (x155) or email NAFECO Apparatus Sales for more information.
Hardin Fire Department - Pumper (TN)
Hardin Fire Department - Pumper (TN)

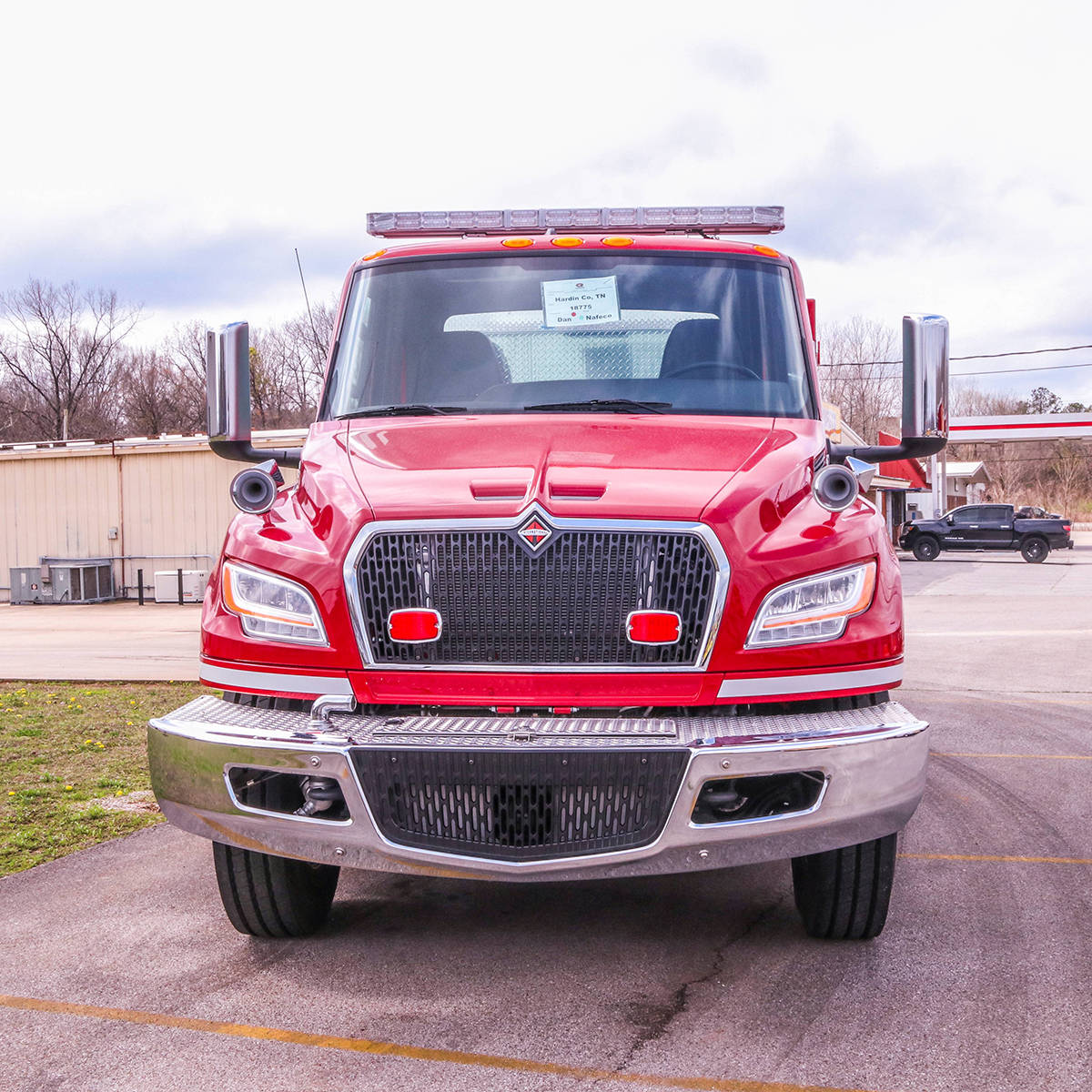

IMG 1263-2

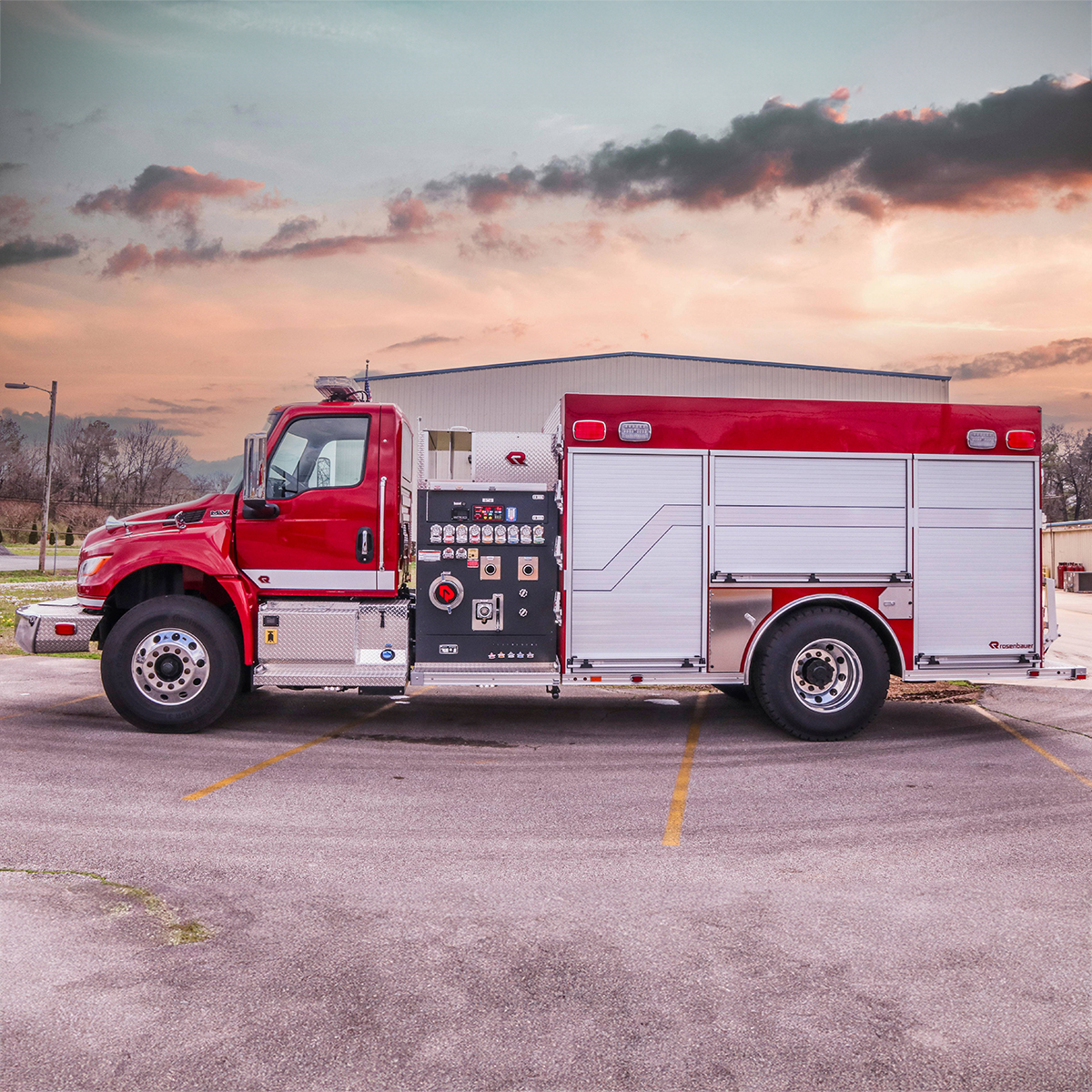

IMG 1264-2copy

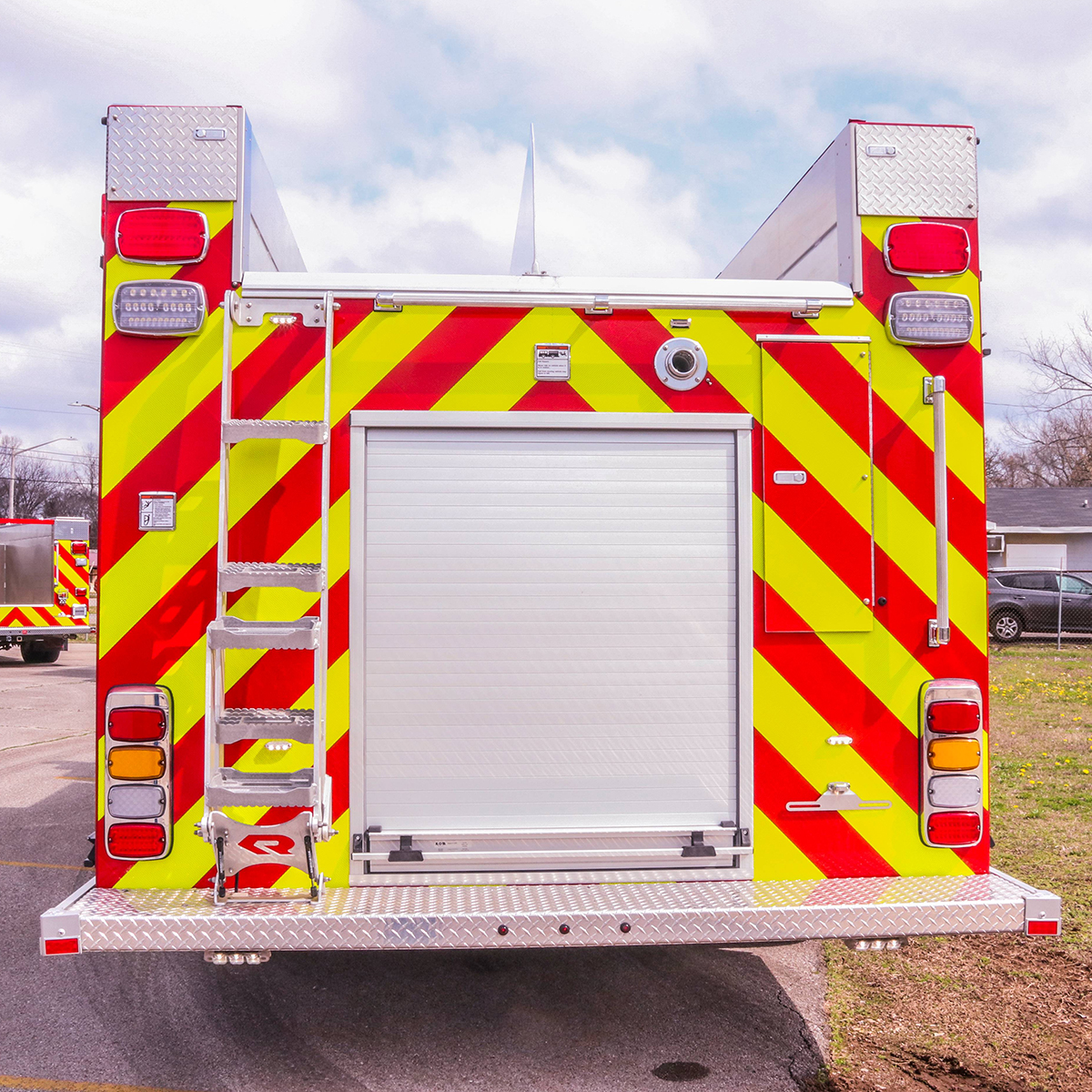

IMG 1265-2

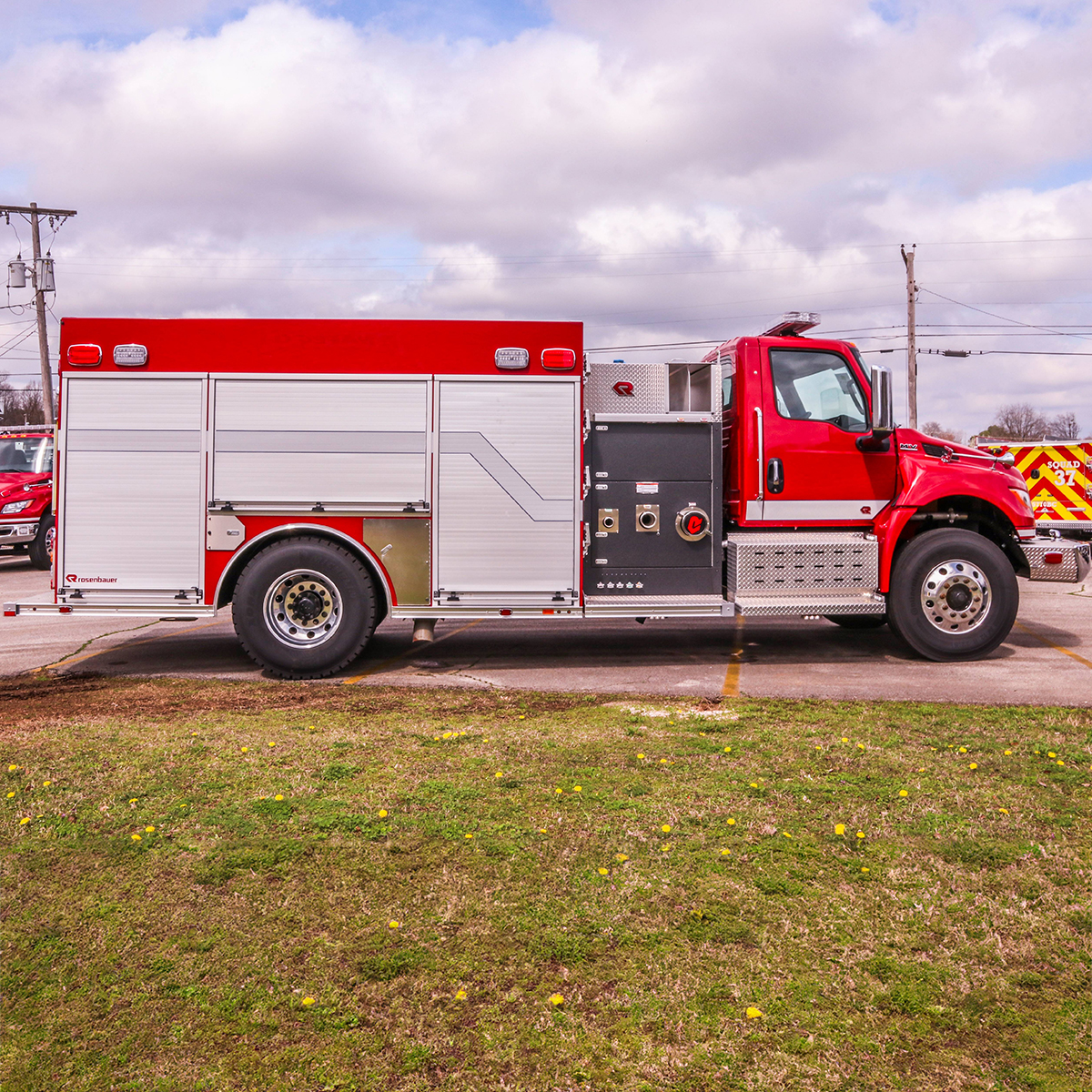

IMG 1267-2

Specifications

Type Pumper
Chassis
  • International MV607
Body
  • Rosenbauer FXR, 3/16” Aluminum, 156” Long
  • 18” Front Bumper Extension with Hose Well
  • Internal Ladder and Suction Hose Storage
  • EZ Climb Ladder on Rear Body Panel
  • Storage for Ten (10) SCBA Spare Bottles
Electrical
  • LED Warning and Scene Light Packages
  • Battery Charger and Air Compressor System
  • Foam System Provisions (Only--No Foam System)
Dimensions
  • Overall Height: 116”
  • Overall Length: 346”
  • Wheelbase: 200”
  • 40,000 lb. GVWR
Drive Train
  • Cummins L9, 360 HP
  • Allison 3000EVS
Pump and Tank
  • 1000 Gallon Water Tank
  • 20 Gallon Foam Tank
  • Waterous CXVC20, 1500 GPM, Single Stage, Midship

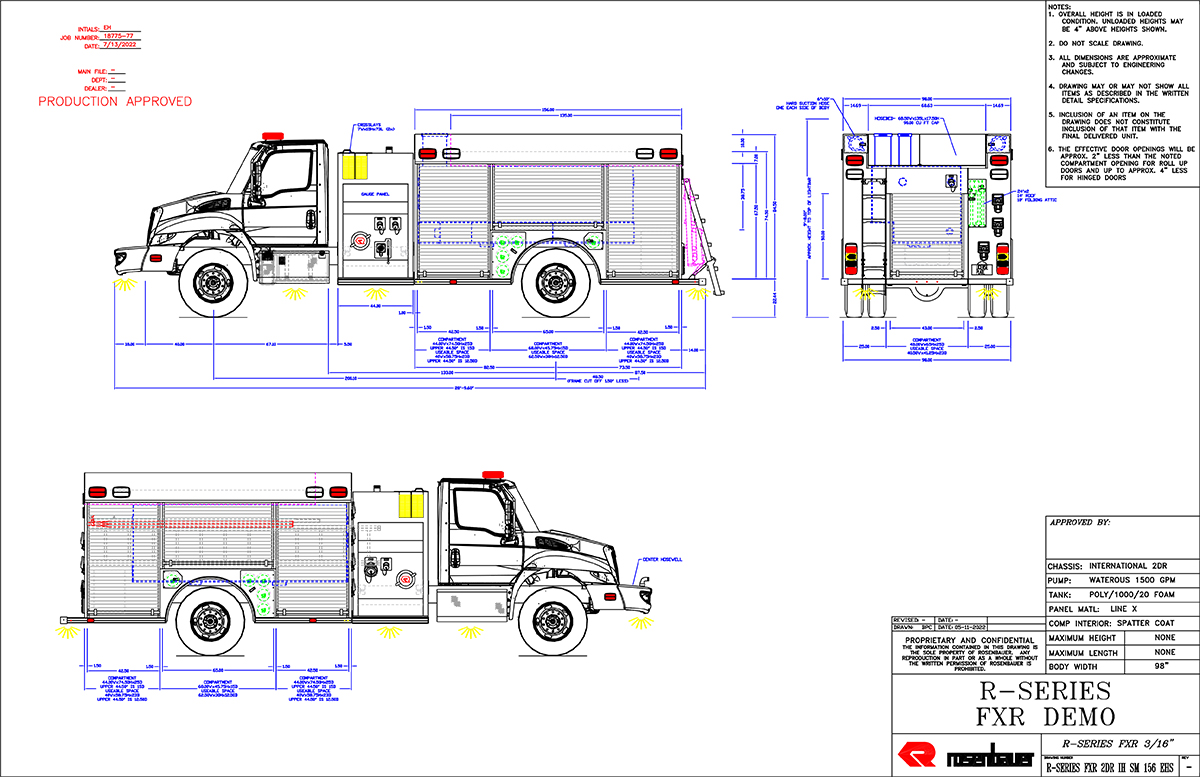

Schematic Drawing Hardin Fire Department - Pumper (TN)
