Nashville Fire Department - Aerial (TN) #75565

Call now (800) 628-6233 (x155) or email apparatussales@nafeco.com for more information.
Nashville Fire Department - Aerial (TN) #75565

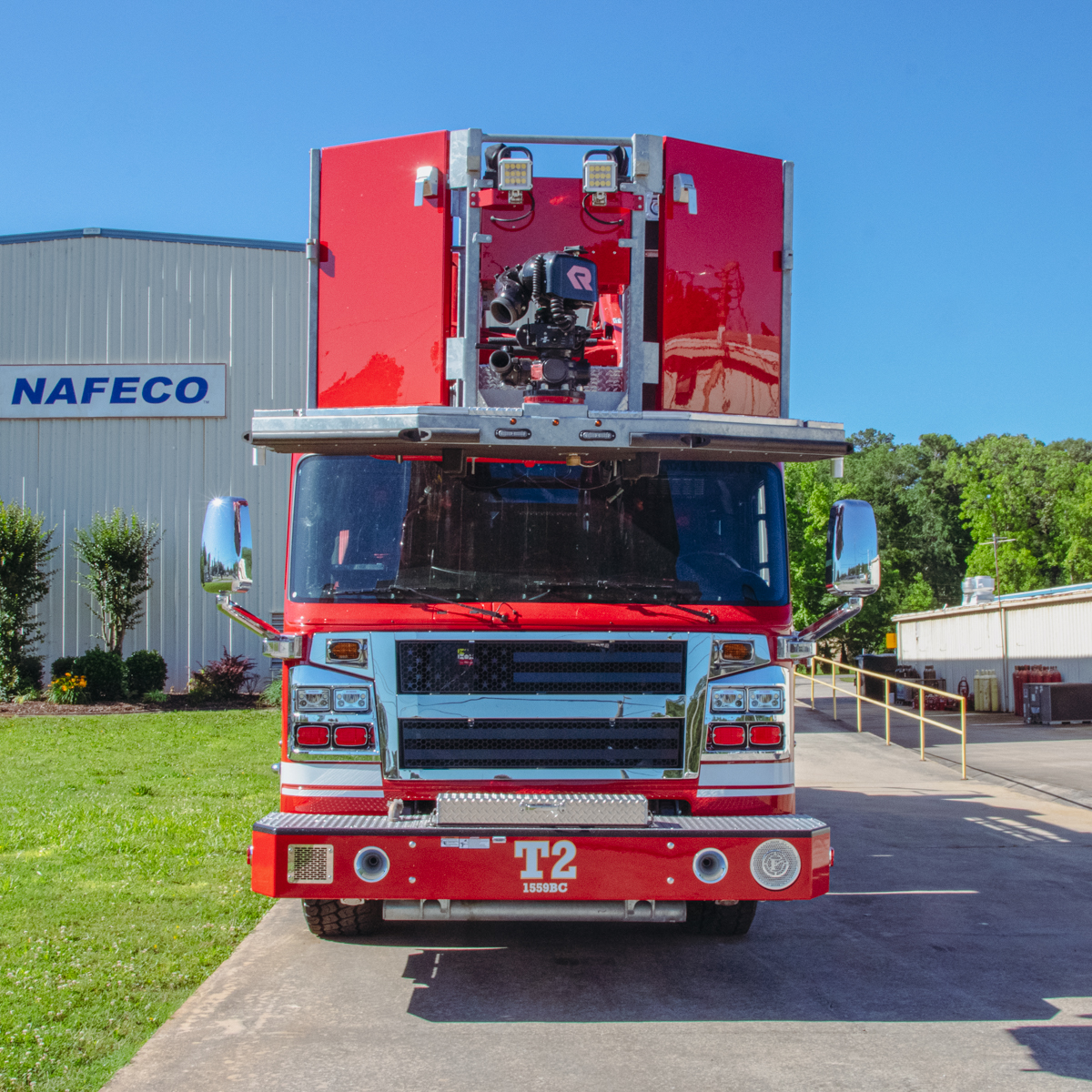

IMG 0030 1200x1200

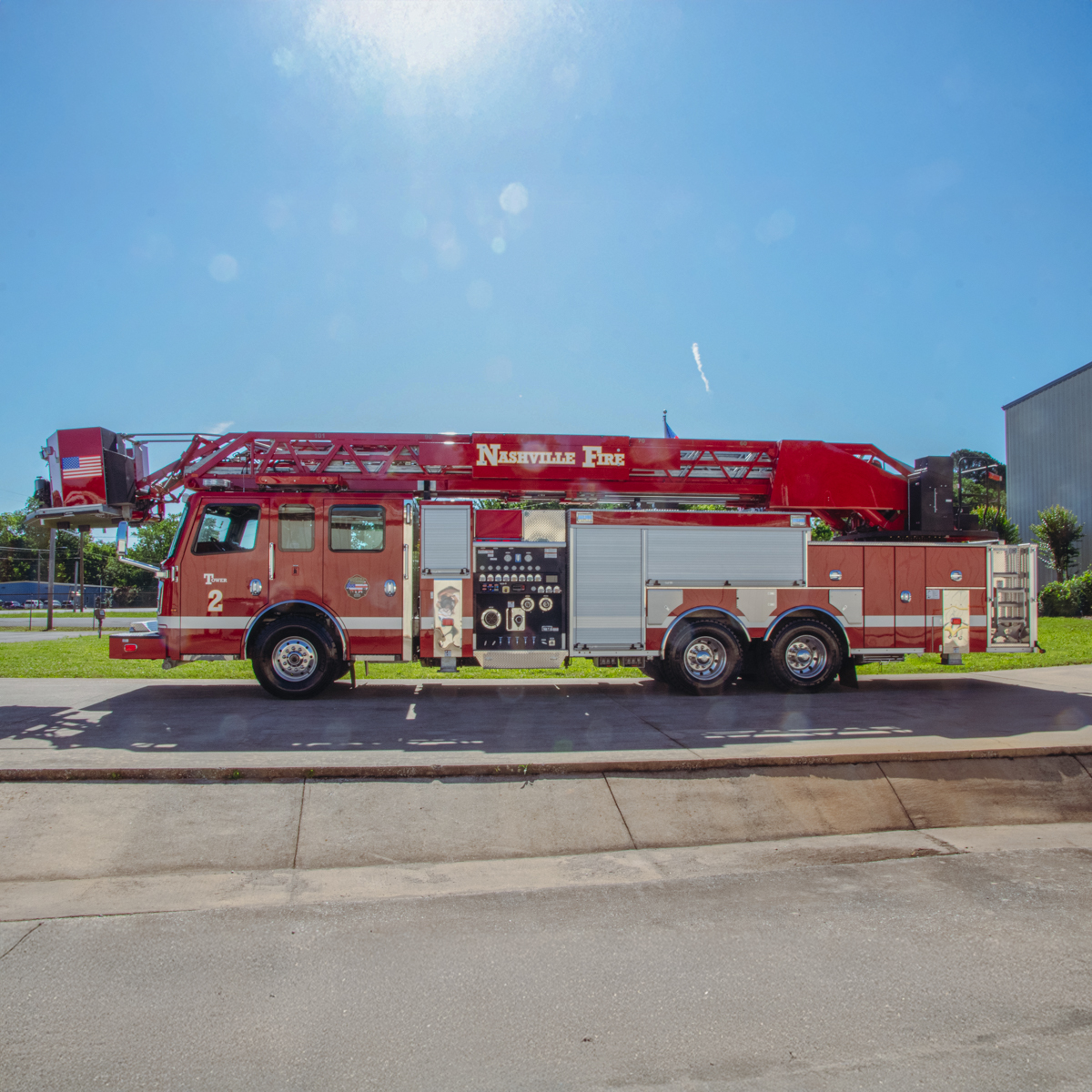

IMG 0031 1200x1200

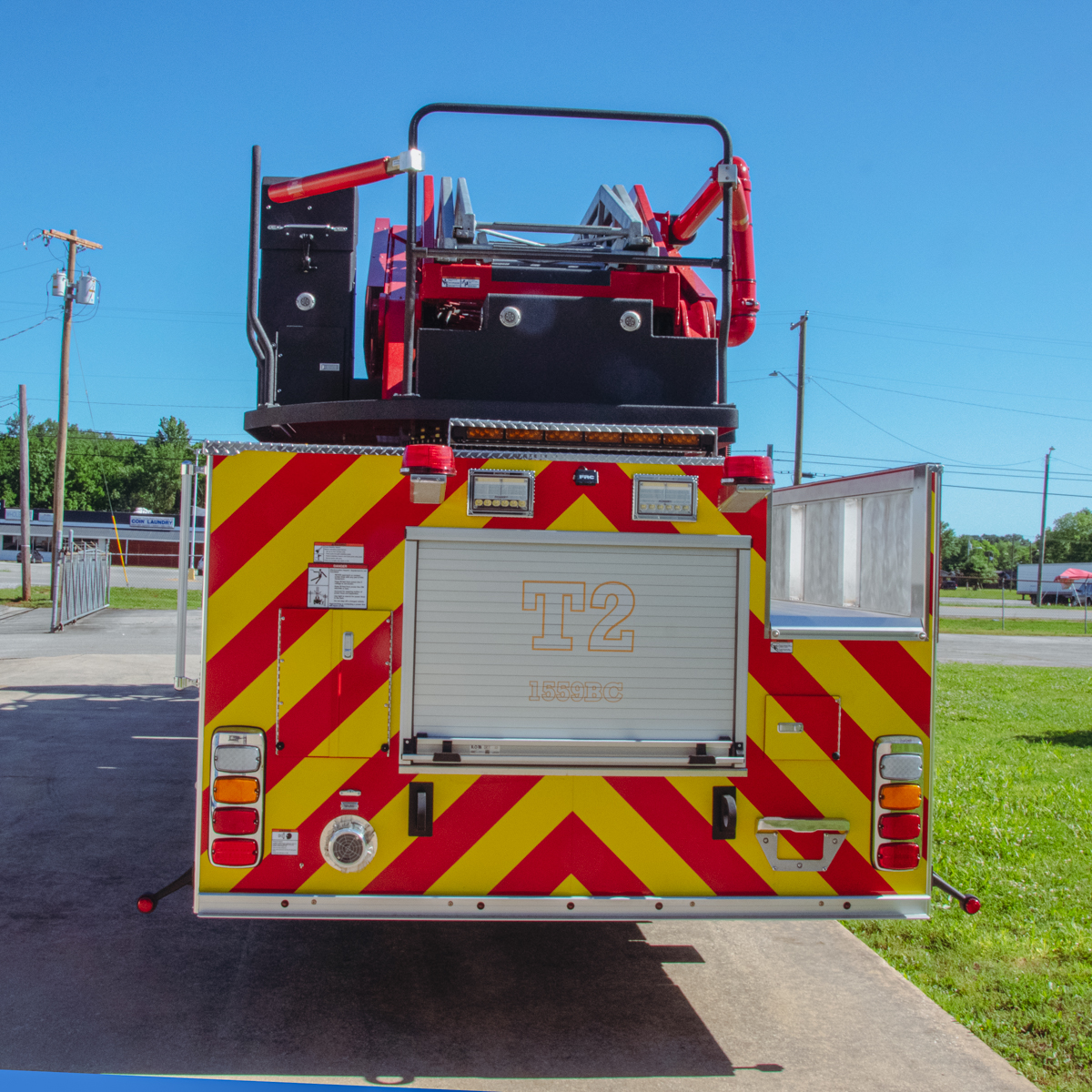

IMG 0032 1200x1200

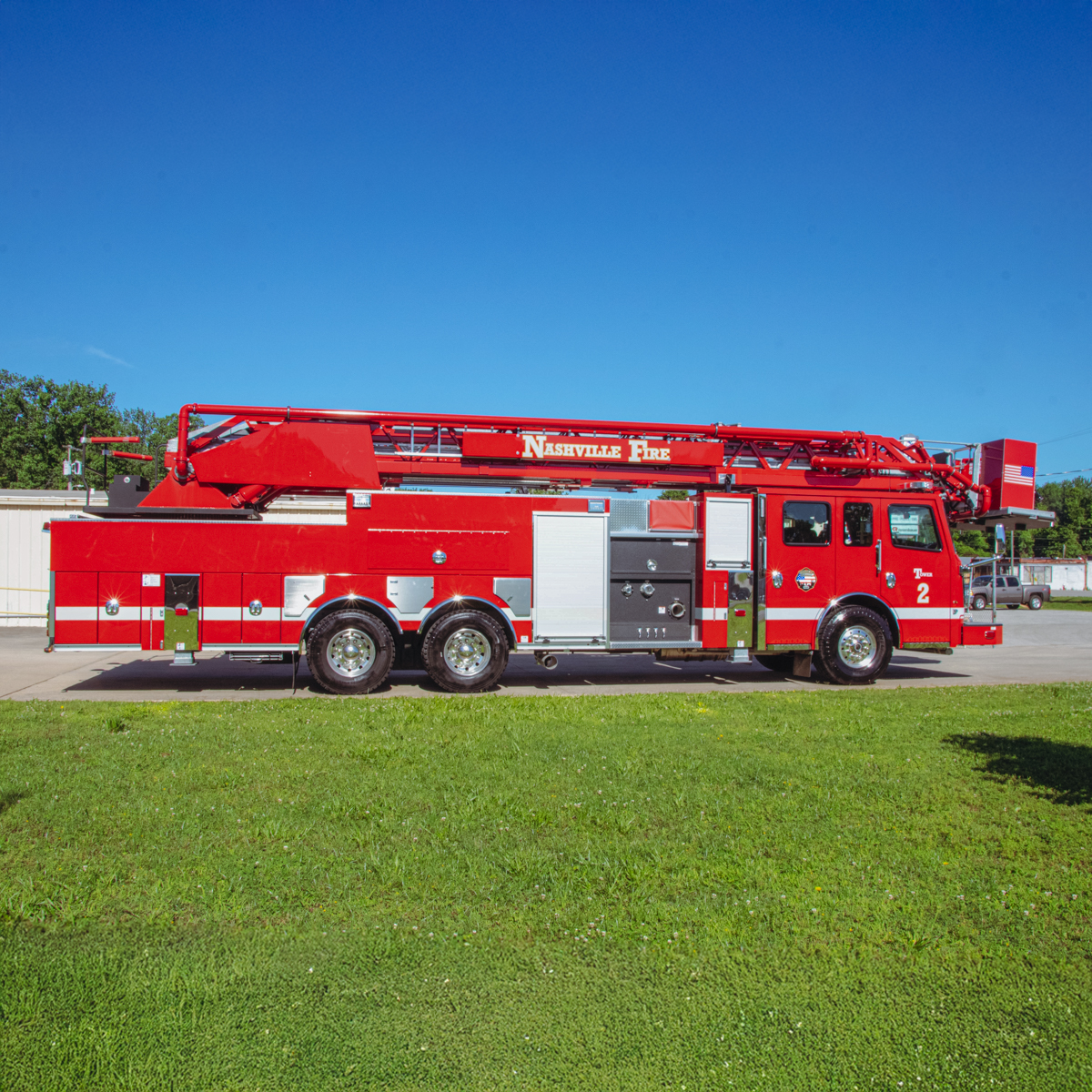

IMG 0033 1200x1200

Specifications

Type Aerial
Additional or Special Options
  • Power Windows
  • Seating for Six (6) Personnel
  • American Flag Grille Inlay
  • Hendrickson SteerTek Front Axle
  • Electronic Stability Control (ESC)
  • Aluminum Wheels
  • Brakes--Front Disc, Rear Drum
  • Triple Frame Rails--Hot Dip Galvanized
  • Weldon VMux Electrical System
  • AM/FM/CD Radio with Weatherband
  • Three (3) Camera System with Audio
  • Battery Charger System
  • Federal Q2B Siren
  • Whelen LED Warning Lights
  • Whelen Pioneer LED Brow Light
  • Whelen Pioneed LED Scene Lights
  • 18” Front Bumper Extension with Hosewell and 2” Discharge
  • Foam System Provision
  • Storage for Twelve (12) SCBA Spare Bottles
  • Wheel Chock Storage Compartment
  • 101', Three (3) Sections, Rear Mount Articulating Platform
  • Hot Dip Galvanized Outriggers and Aerial Sections
  • Stokes Basket Storage Outside of Base Section
  • Platform Basket with (2) Rope Eyelets, Repelling Arms, Parapet Arms
  • Command Pedestal and Platform Control System
  • Two (2) Front and Two (2) Out and Down “H-Style” Outriggers
  • Short Jack Capable
  • Auto Self Leveling
  • Wireless Radio Remote for Aerial, Monitor, and Outrigger Controls
  • 1000# Dry Tip Load, 500# Wet Tip Load
  • Clean Air Scrubber in Cab
  • FireCom 5100D Wireless Intercom System
  • Power Inverter
Body
  • Rosenbauer EXT, 3/16” Aluminum
Chassis
  • Rosenbauer Commander, 60”, Flat Roof
  • King Cobra 101' Articulated Aerial Platform
Dimensions
  • *Overall Height: 146”
  • *Overall Length: 571”
  • *Wheelbase: 245”
Engine
  • Cummins X15, 600 HP
Foam
  • 30 Gallons
Pump
  • Rosenbauer N80, 2250 GPM
Transmission
  • Allison 4500 EVS
Water
  • 500 Gallons

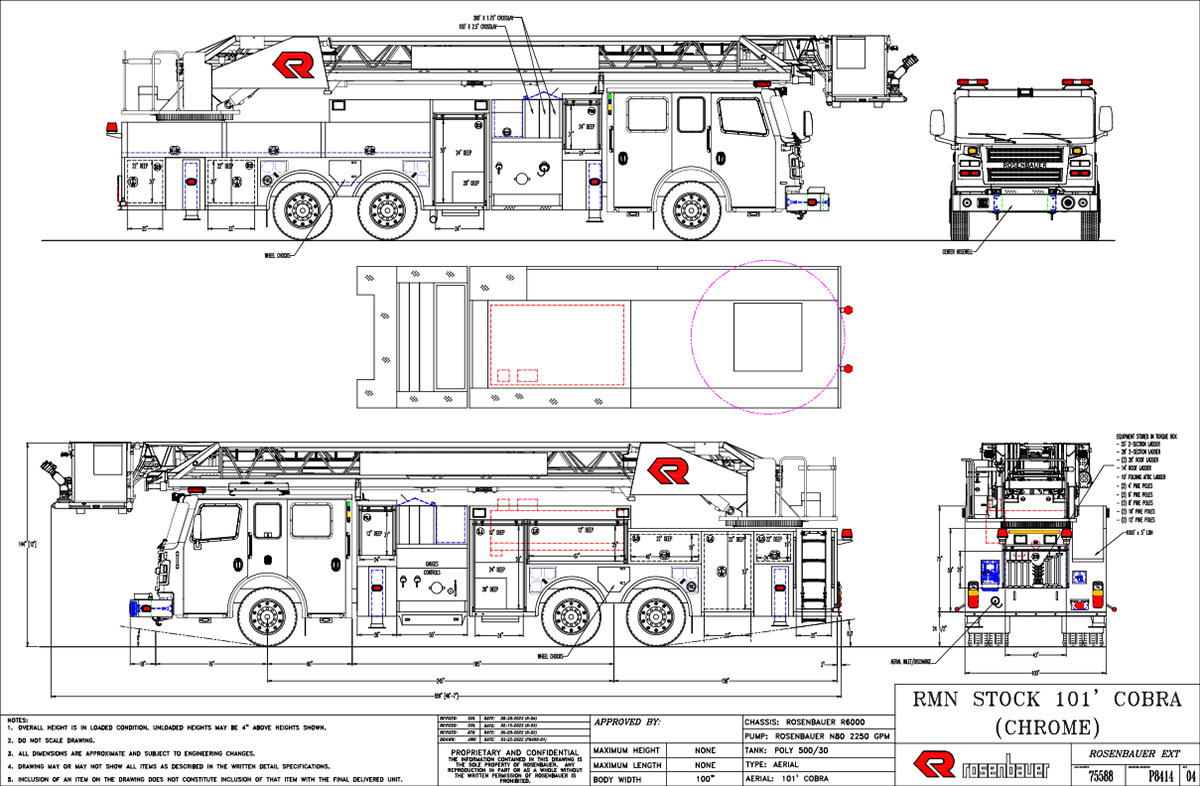

Schematic Drawing P8414-04-Model
