Nashville Fire Department #75588

Call now (800) 628-6233 (x155) or email NAFECO Apparatus Sales for more information.
Nashville Fire Department #75588

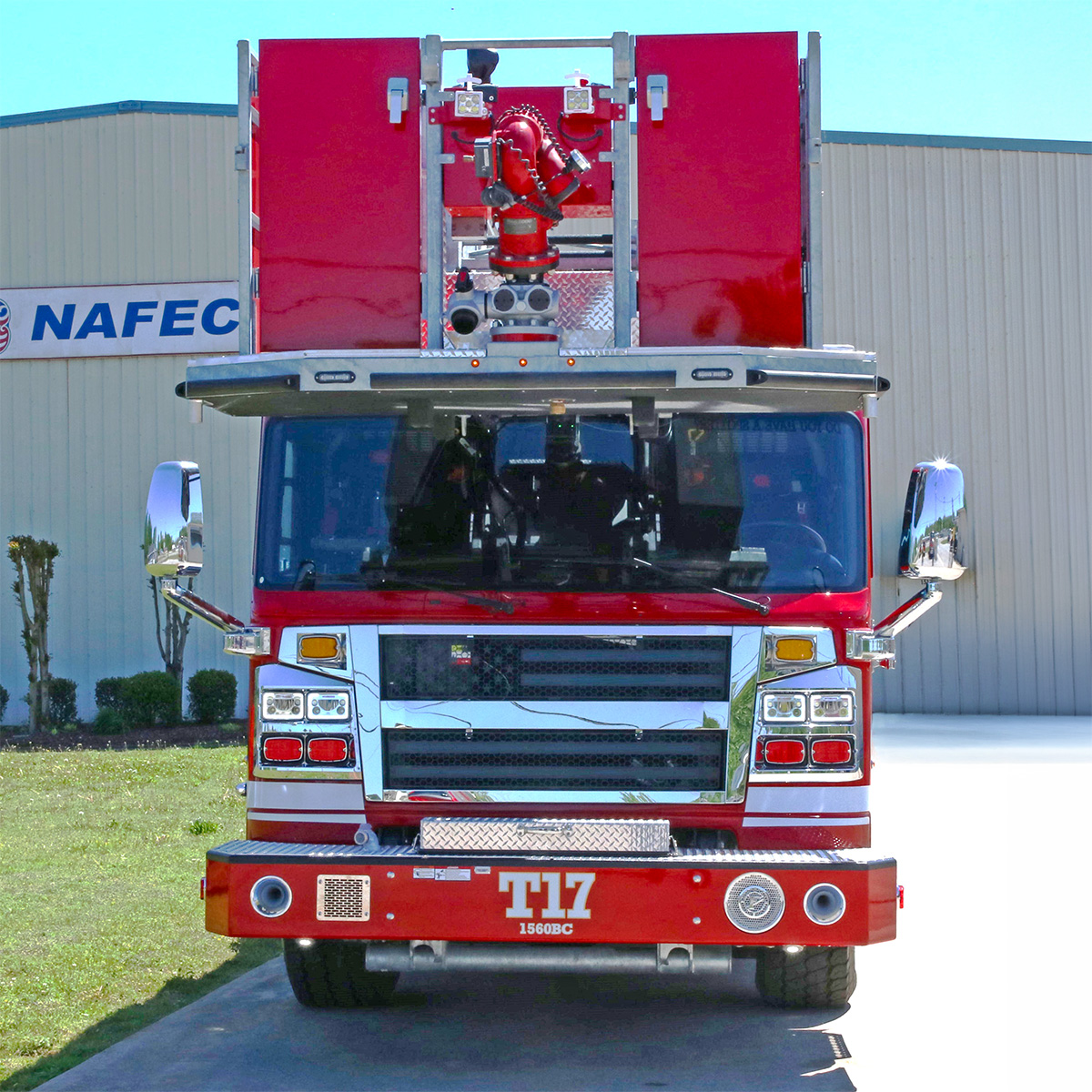

Nashville 75588 IMG 0021 1200x1200

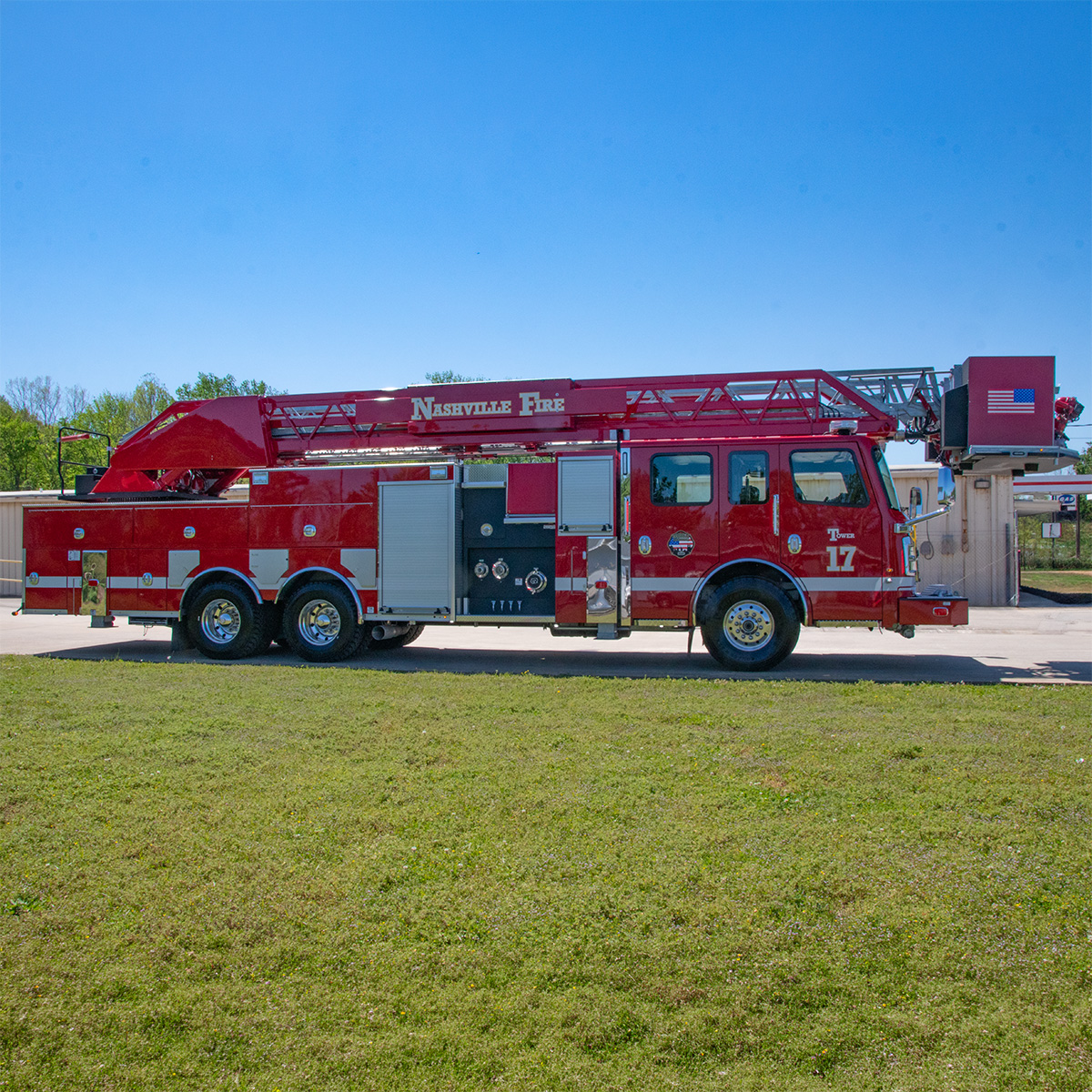

Nashville 75588 IMG 0022 1200x1200

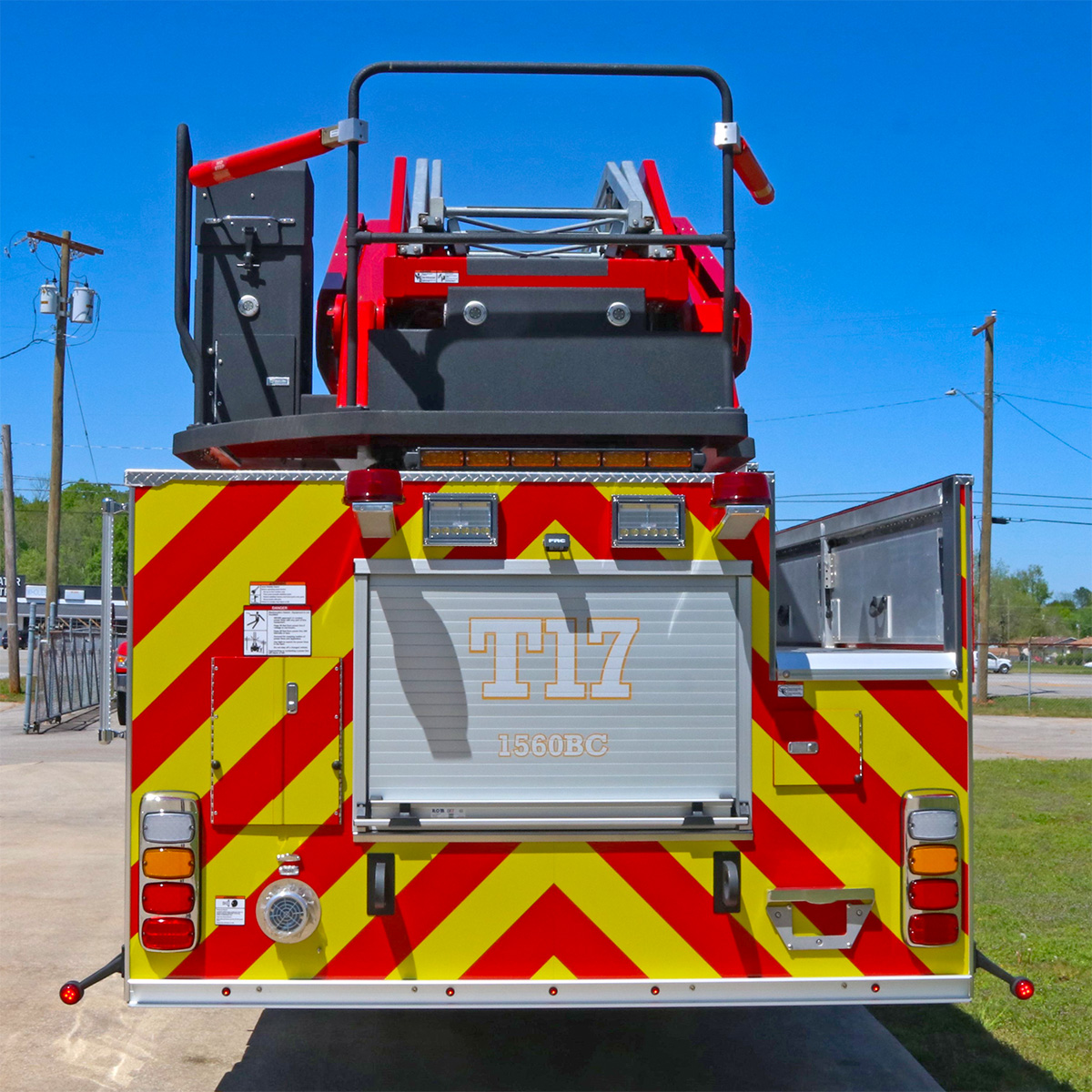

Nashville 75588 IMG 0023 1200x1200

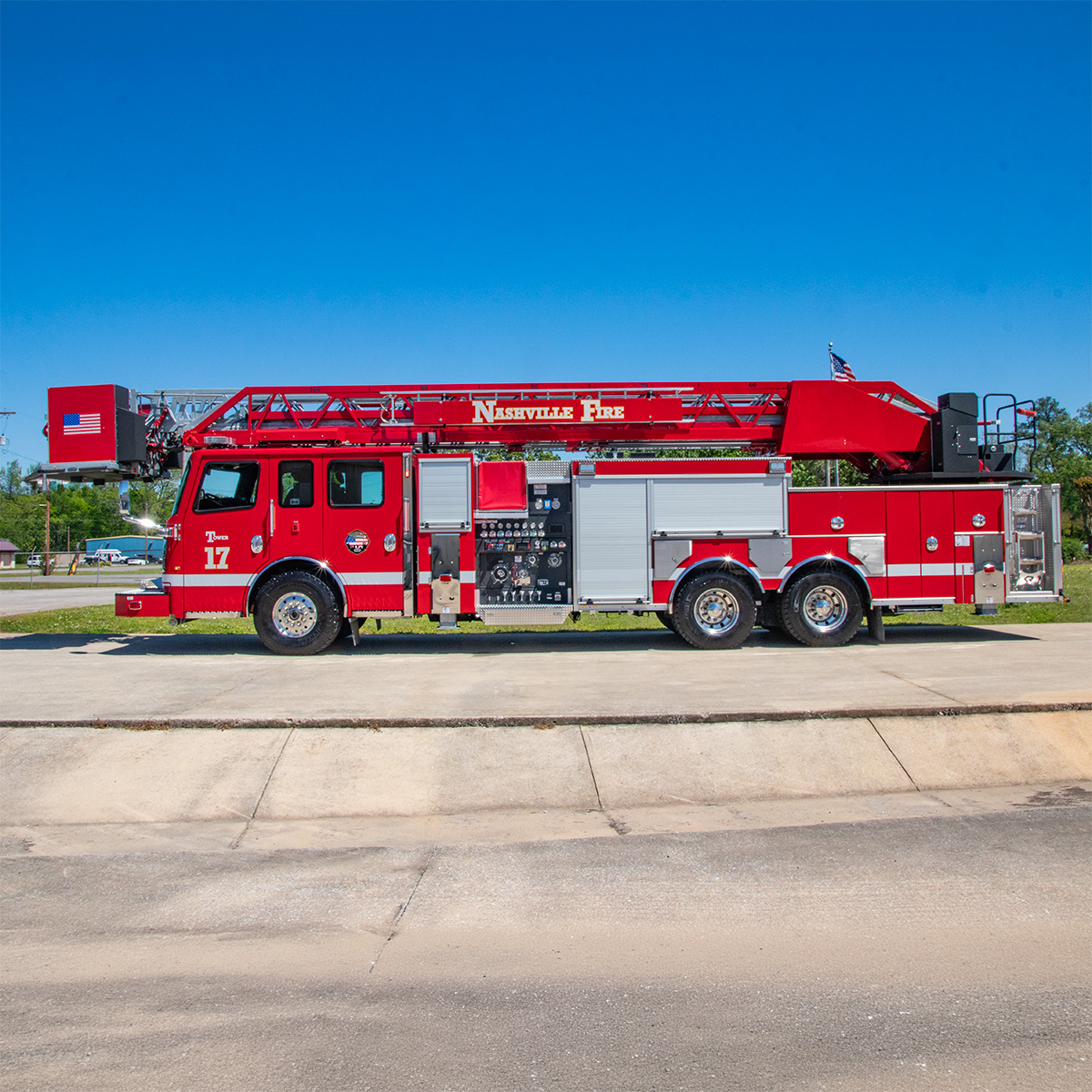

Nashville 75588 IMG 0024 1200x1200

Specifications

Type Aerial
Additional or Special Options
  • Full Length Cab Doors
  • Power Windows
  • Exterior Grab Handles with Red LED Lighting
  • American Flag Honeycomb Front Grille Inlay
  • Wig-Wag Alternating Headlights
  • Hendrickson SteerTek Front Axle
  • Hendrickson ULTIMAXX UMX Rear Suspension
  • Aluminum Wheels
  • Triple Channel Frame
  • 68 Gallons Dual Fill Fuel Tank
  • WB/AM/FM/CD Radio System
  • HAAS Alert System
  • Officer and Rear Camera System with Audio
  • Federal Q2B Siren
  • Door Open Isolation System
  • LED Brow Light
  • LED Warning Light Package
  • LED Surface Mount Scene Light Package
  • 18" Front Bumper Extension with Center Hosewell
  • 4" Aerial Discharge
  • Side Load Hosebed, Officer's Side
  • Torque Box Ladder and Pike Pole Storage Compartment
  • Wheel Well Storage for Twelve (12) SCBA Spare Bottles and Wheel Chocks
  • 101' Three (3) Section Steel Ladder
  • Galvanized Outriggers (Beam, Outer Jack Tube, Inner Jack Tube, Jack Cover Plate, and Jack Pad)
  • Galvanized Torque Box
  • Stokes Basket Storage Compartment Outside of Base Section
  • Smart Aerial Control with Command Pedestal
  • (2) Front Out-Down, (2) Rear Out-Down Outriggers
  • 360 Degrees Waterway, 5" Swivel
  • Wireless Remote for the Aerial, Monitor, and Outrigger Controls
  • Elkhart Model 7451 EXM2 BOA 2000 GPM Monitor, Elkhart #SM-2000E Nozzle
Body
  • Rosenbauer Cobra 101' Rear Mount Tandem Axle Platform
  • EXT, Aluminum
  • 100" Wide
Chassis
  • Rosenbauer Commander
  • 60" Cab Length
  • Flat Roof
Dimensions
  • Overall Length: 559" (46'-7")
  • Overall Height: 144" (12')
  • Wheelbase: 245"
Electrical
  • Weldon VMux Multiplex System
  • Driver and Officer Vista Screens
Engine
  • Cummins X15, 600 HP
Pump
  • Rosenbauer N110, 2250 GPM, NP, Midship Splitshaft, Aluminum
Seating
  • Seats Inc. XL Series Seat Package for Six (6) Personnel
Transmission
  • Allison 4500 EVS
Water
  • 500 Gallons
Schematic Drawing P8414-04-Model
