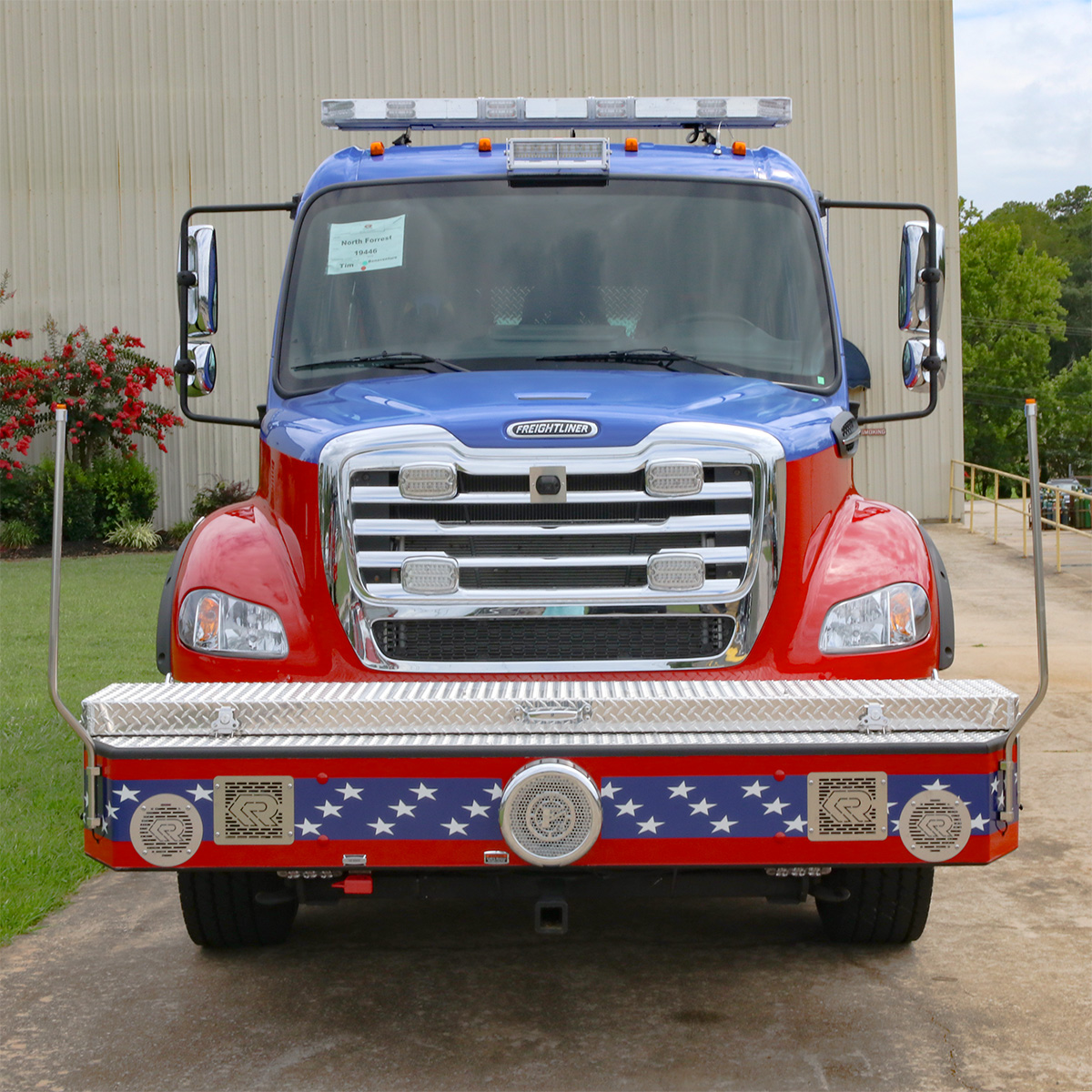

NorthForrest MS 19446 IMG 0003 1200x1200

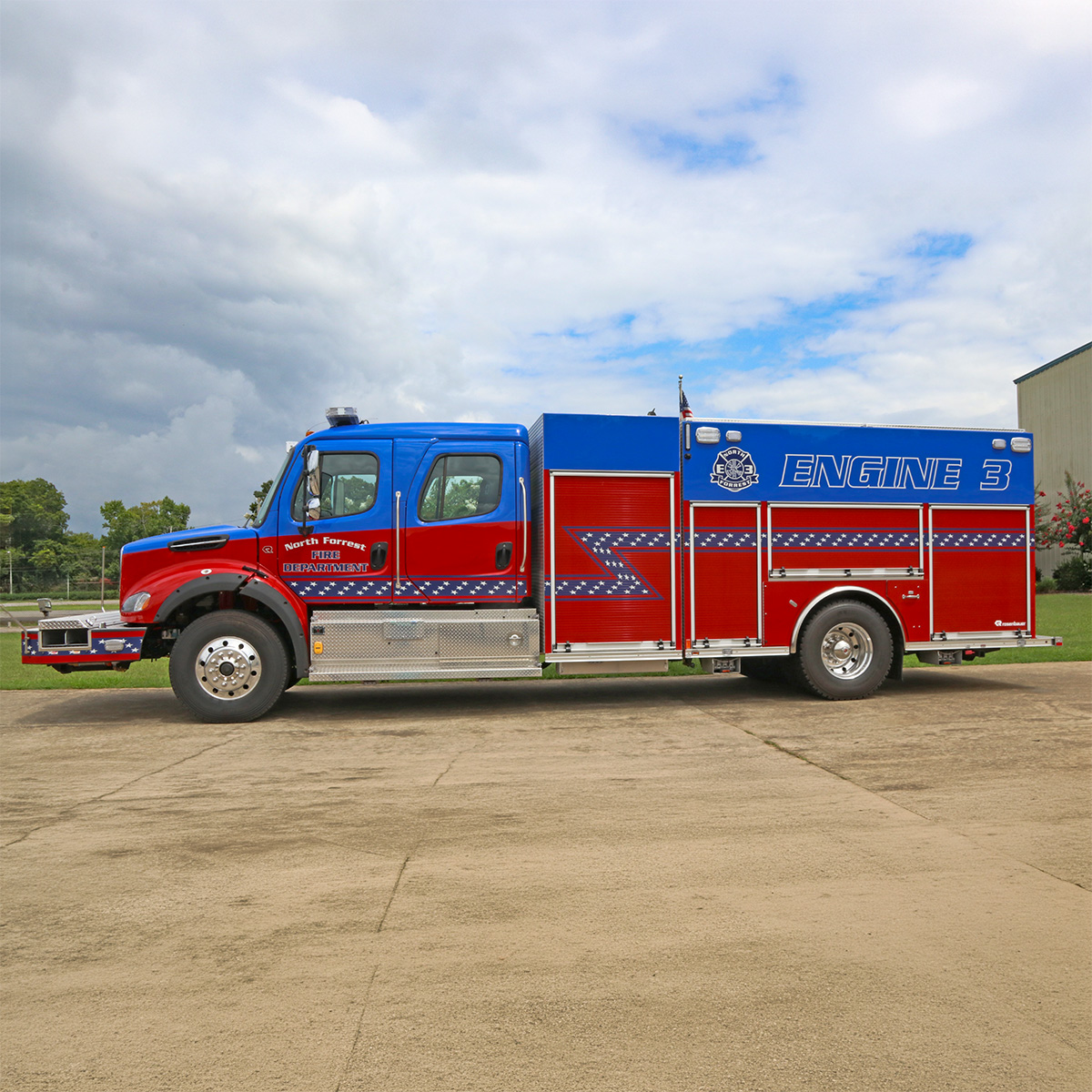

NorthForrest MS 19446 IMG 0004 1200x1200

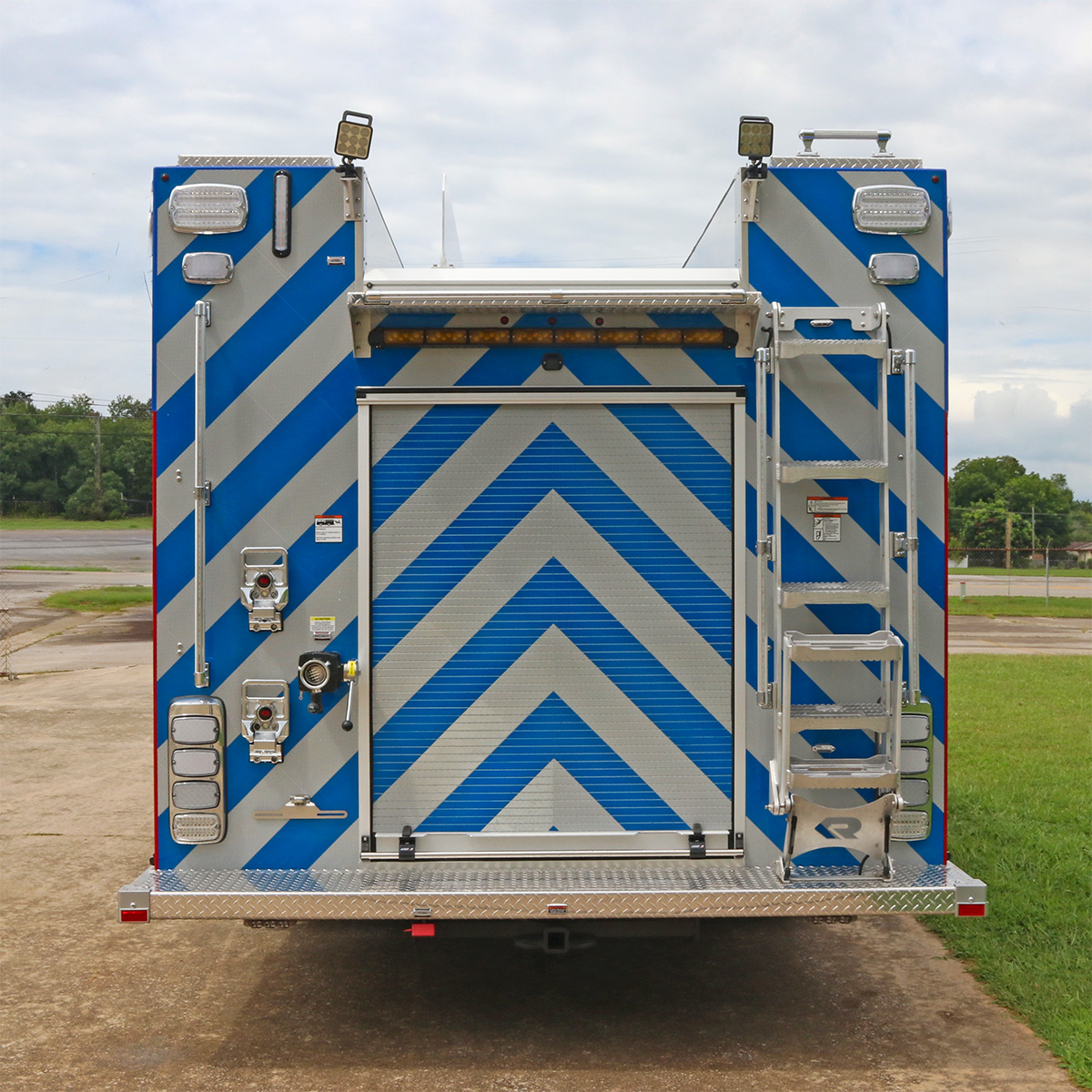

NorthForrest MS 19446 IMG 0005 1200x1200

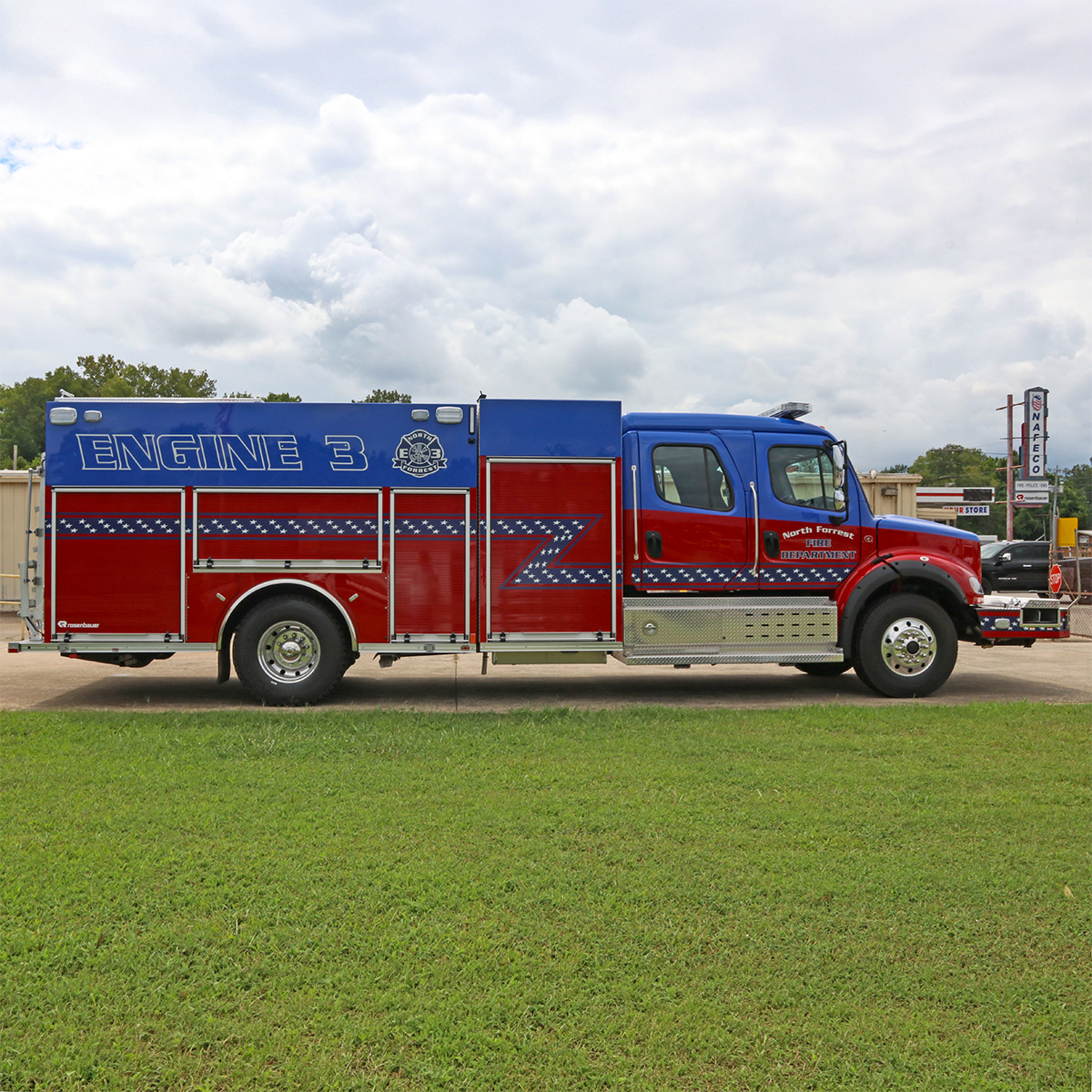

NorthForrest MS 19446 IMG 0006 1200x1200

Specifications

Type Pumper
Chassis
  • Freightliner M2 112+
  • 46,000# GVWR
  • Aluminum Wheels
  • Electric Door Locks with Keyless Entry
  • Electronic Stability Control
  • AM/FM/WB Radio
  • Alternating Flashing Headlamp System
  • Cab Step Overlays with Compartments
  • IMMI Smart Dock SCBA Brackets
Engine
  • Cummins L9, 360 HP
  • Engine Brake with Variable Geometry Turbo
Transmission
  • Allison 3000 EVS
Seating
  • Seats Inc. 911 Universal Series
  • --Air Ride Driver
  • --SCBA Officer
  • --Three (3) SCBA Crew
Body
  • Roof Compartment, Each Side
  • Rosenbauer FX, 1/8" Aluminum
  • 102" Wide
  • Full Height/Full Depth Compartments
  • Thru the Tank Ladder and Pike Pole Storage
  • Intermediate Rear Step
  • Rosenbauer EZ Climb Rear Access Ladder
  • Backlit Handrails, Red LED
  • Wheel Well Storage for Eight (8) SCBA Spare Bottles
  • Wheel Well Storage for Oil Dry
  • Wheel Well Storage for Two (2) Fire Extinguishers
  • Winch/Rope Receivers--Front of Chassis, Rear of Body, Each Side of Body
Electrical
  • Kussmaul Battery Charger/Compressor System with Super Auto Eject
  • 120V, 20 Amp Straight Blade Duplex Receptacle
  • 120V, 15 Amp Straight Blade Duplex Receptacle
Pump
  • Officer's Side Auxiliary Intake
  • Hale RSD, Single Stage, Midship, PTO
  • 1250 GPM
  • Automatic Air Primer
  • Pistol Grip Lever Controls
Water
  • Rectangular Tank
  • 2-1/2" Rear Direct Tank Fill
  • 1000 Gallons
Foam
  • FoamPro 1600 Foam System
  • 20 Gallons, Class A
Additional or Special Options
  • InView 360 Video System with Two (2) 7" Monitors
  • Whelen LED Warning Light Package
  • Whelen LED Surface Mount Scene Light Package
  • Whelen LED Brow Light
  • Federal Signal Q2B Siren
  • Whelen LED Traffic Advisor
  • Enclosed Pump Panel
  • Running Board Hose Wells
  • Air Horn Push Button on Pump Panel
  • 28" Front Bumper Extension with Crosslays and Full Width Raised Lid
  • Booster Reel with 150' of 1" Hose
  • Command Light Shadow Light Tower with Four (4) FRC Radiant Command LED Lamps
Dimensions
  • Overall Length: 35'-3.70"
  • Overall Height: 120"
  • Wheelbase: 241"
