Pointe Coupee Fire Department, LA #19392
PointeCoupeeLA 19392 1000005947 1200x1200
PointeCoupeeLA 19392 1000005955 1200x1200
PointeCoupeeLA 19392 IMG 8268 1200x1200
PointeCoupeeLA 19392 IMG 8270 1200x1200
PointeCoupeeLA 19392 IMG 8271 1200x1200
PointeCoupeeLA 19392 IMG 8274 1200x1200
PointeCoupeeLA 19392 IMG 8275 1200x1200

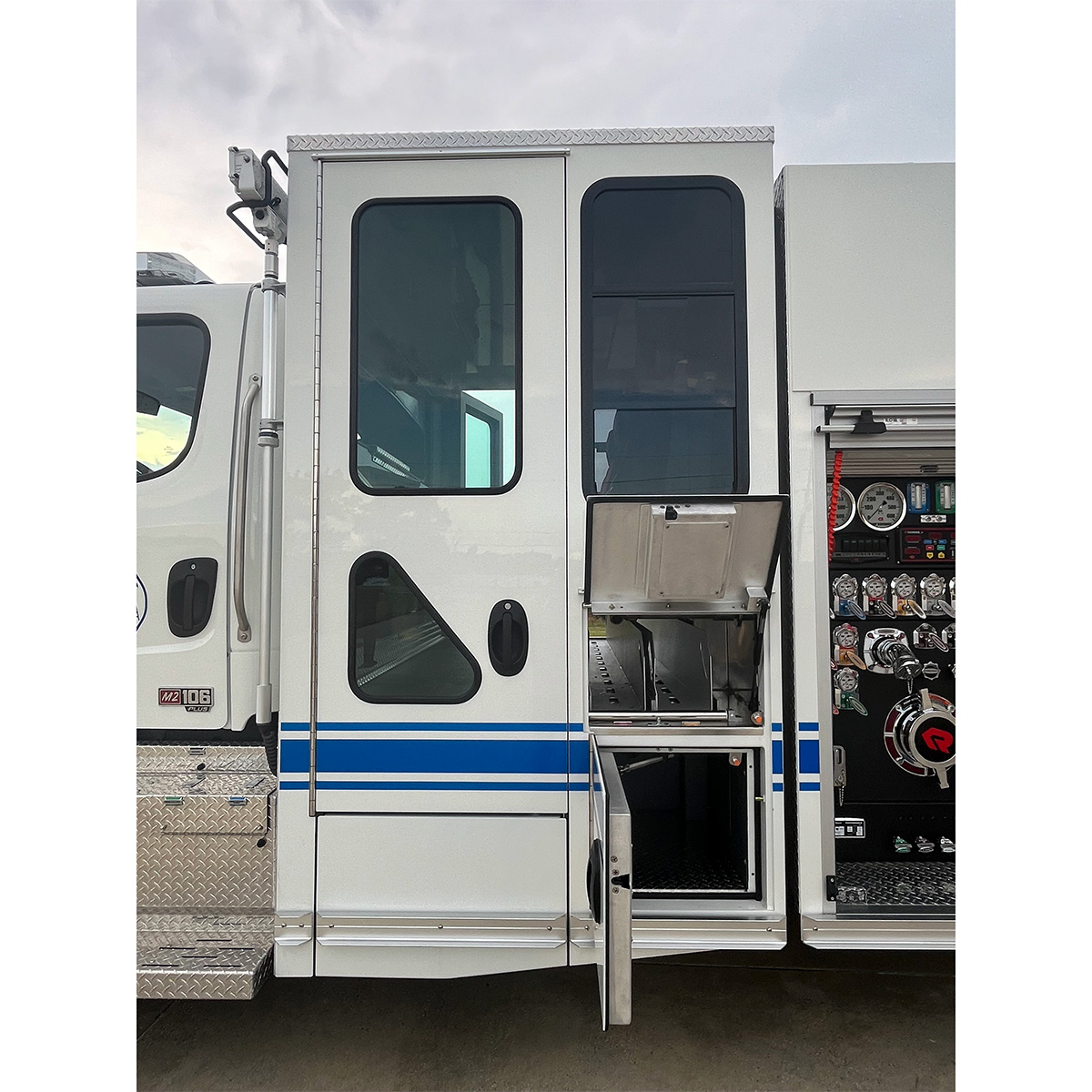

PointeCoupeeLA 19392 IMG 8276 1200x1200

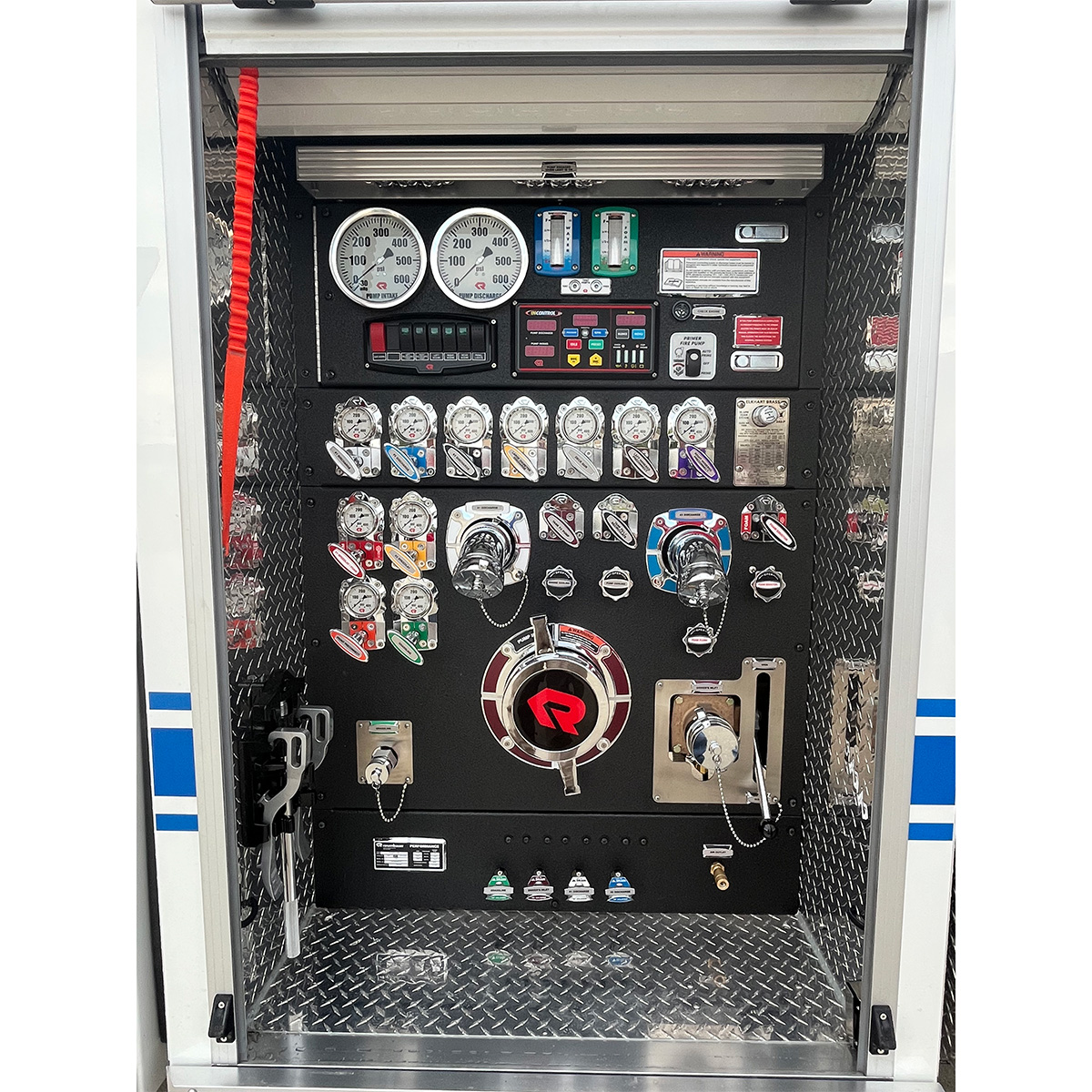

PointeCoupeeLA 19392 IMG 8278 1200x1200
PointeCoupeeLA 19392 IMG 8279 1200x1200
PointeCoupeeLA 19392 IMG 8283 1200x1200
PointeCoupeeLA 19392 IMG 8288 1200x1200
PointeCoupeeLA 19392 IMG 8292 1200x1200
PointeCoupeeLA 19392 IMG 8293 1200x1200
PointeCoupeeLA 19392 IMG 8296 1200x1200
PointeCoupeeLA 19392 IMG 8298 1200x1200

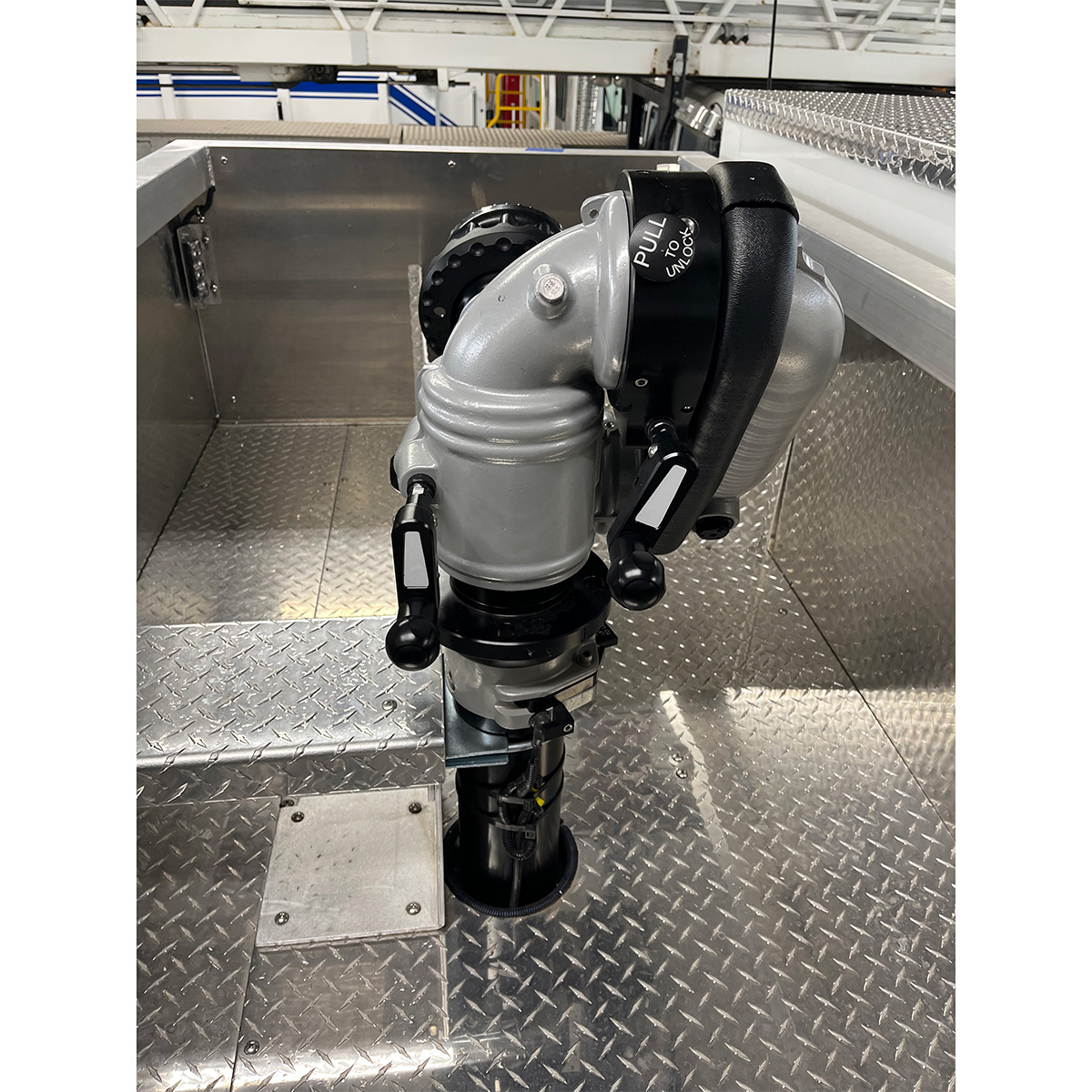

PointeCoupeeLA 19392 IMG 8304 1200x1200

Specifications

Type Pumper
Additional or Special Options
  • FRC True Sight Rear Camera System
  • Whelen Pioneer Plus PFH2 Telescoping Lights with Cab and Pump Panel Switches
  • Fire Tech 46" LED Brow Light
  • Whelen LED Surface Mount Scene Light Package
  • Federal Q2B Siren
  • Whelen LED Warning Light Package

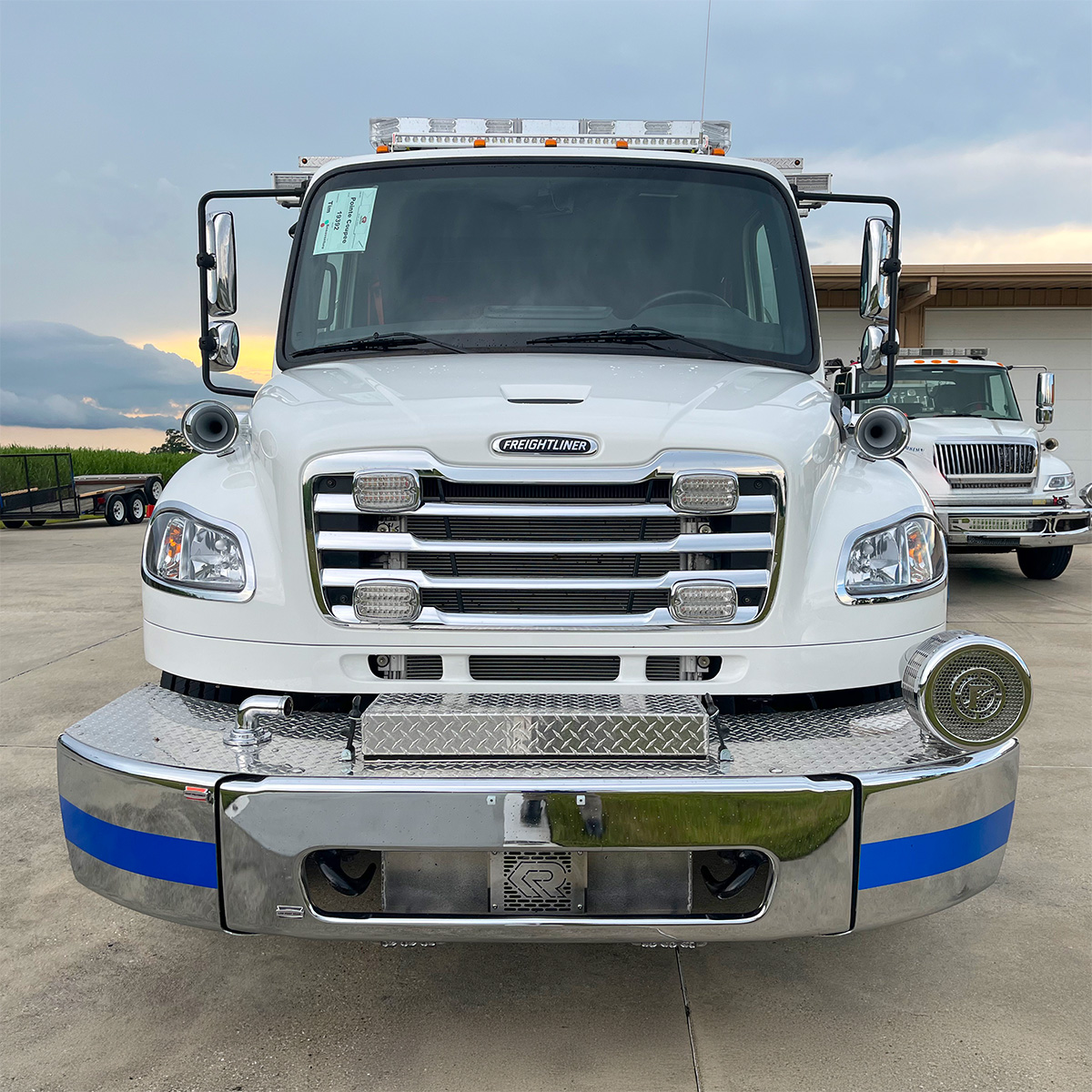

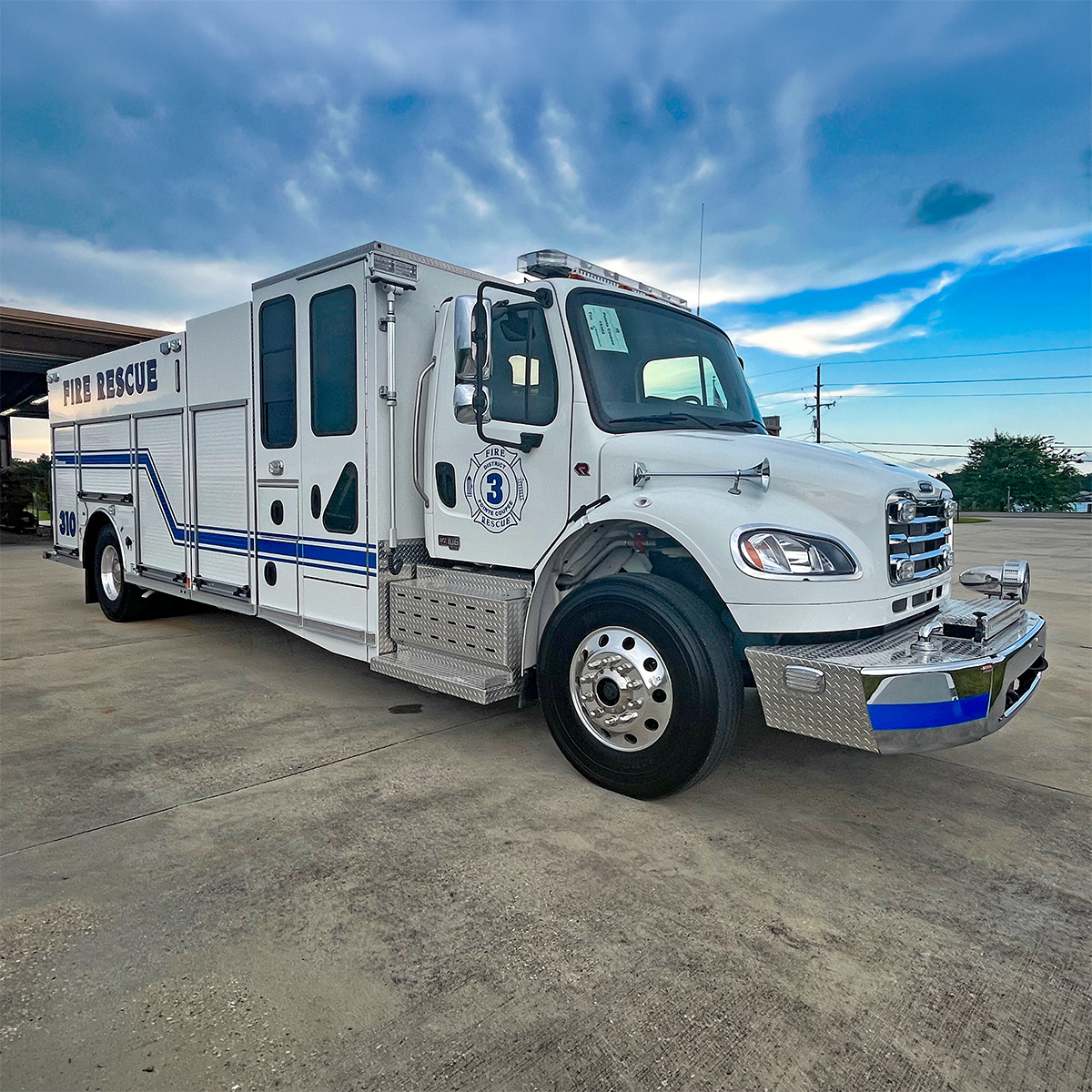

  • 18" Front Bumper Extension with Center Bumper Compartment, Raised Lid

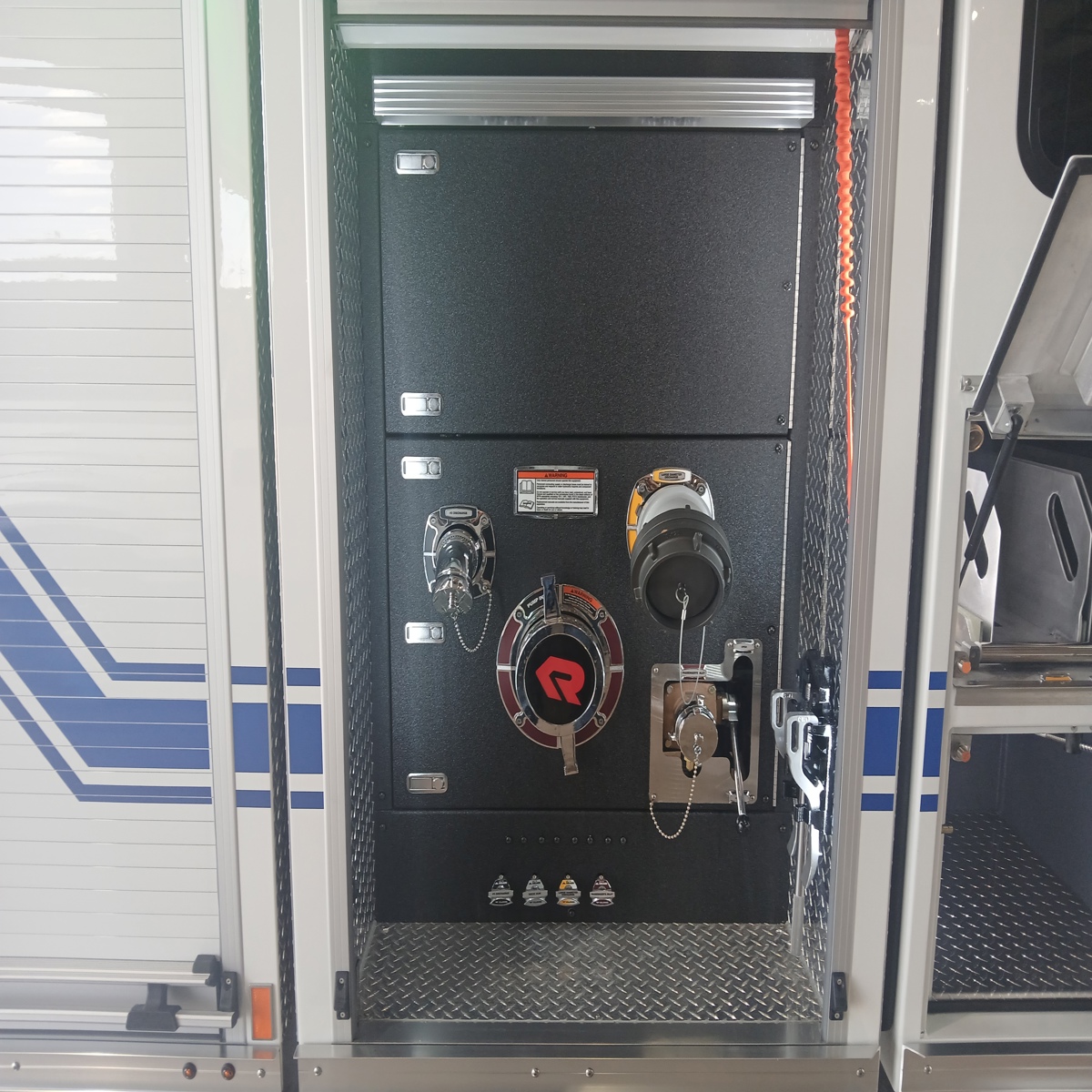

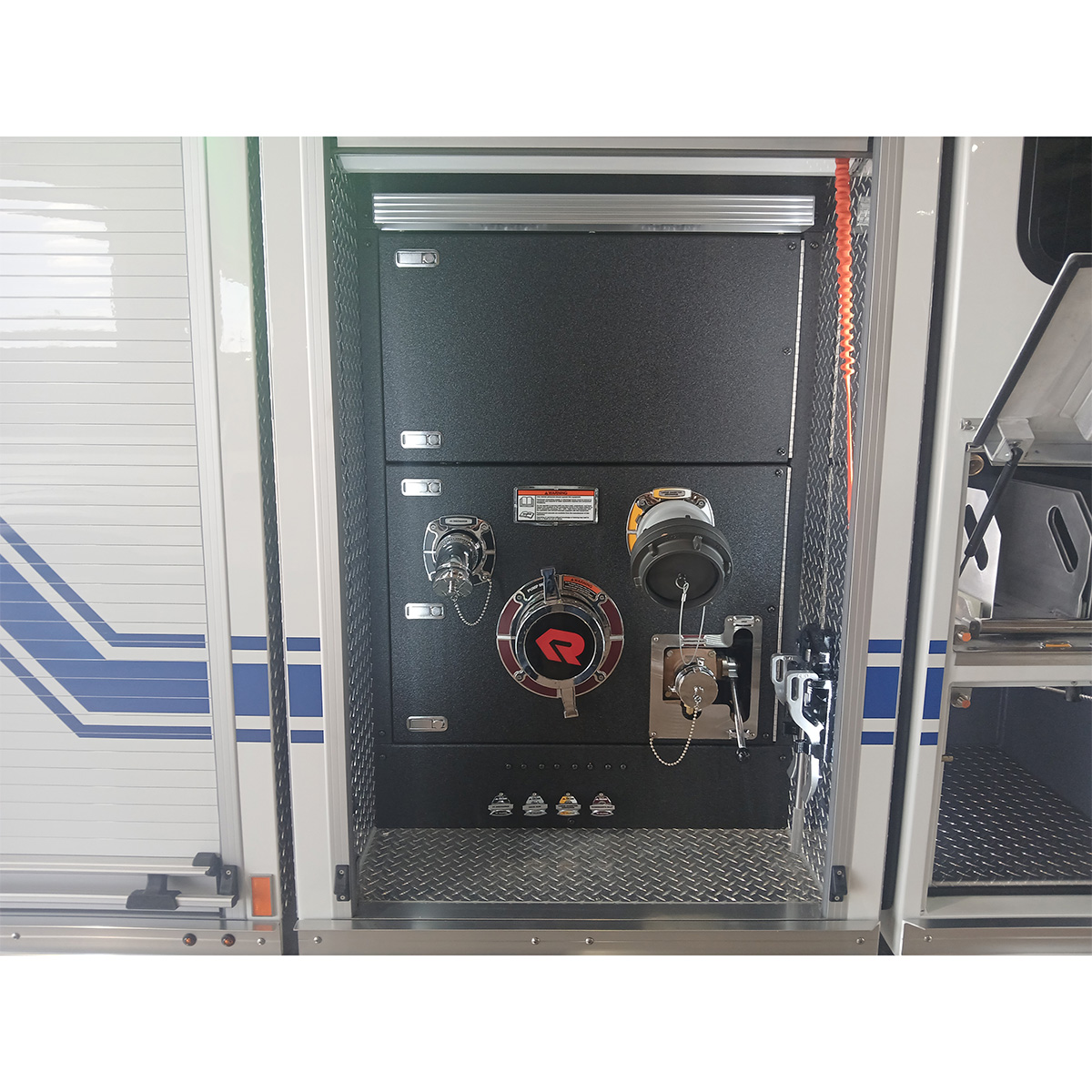

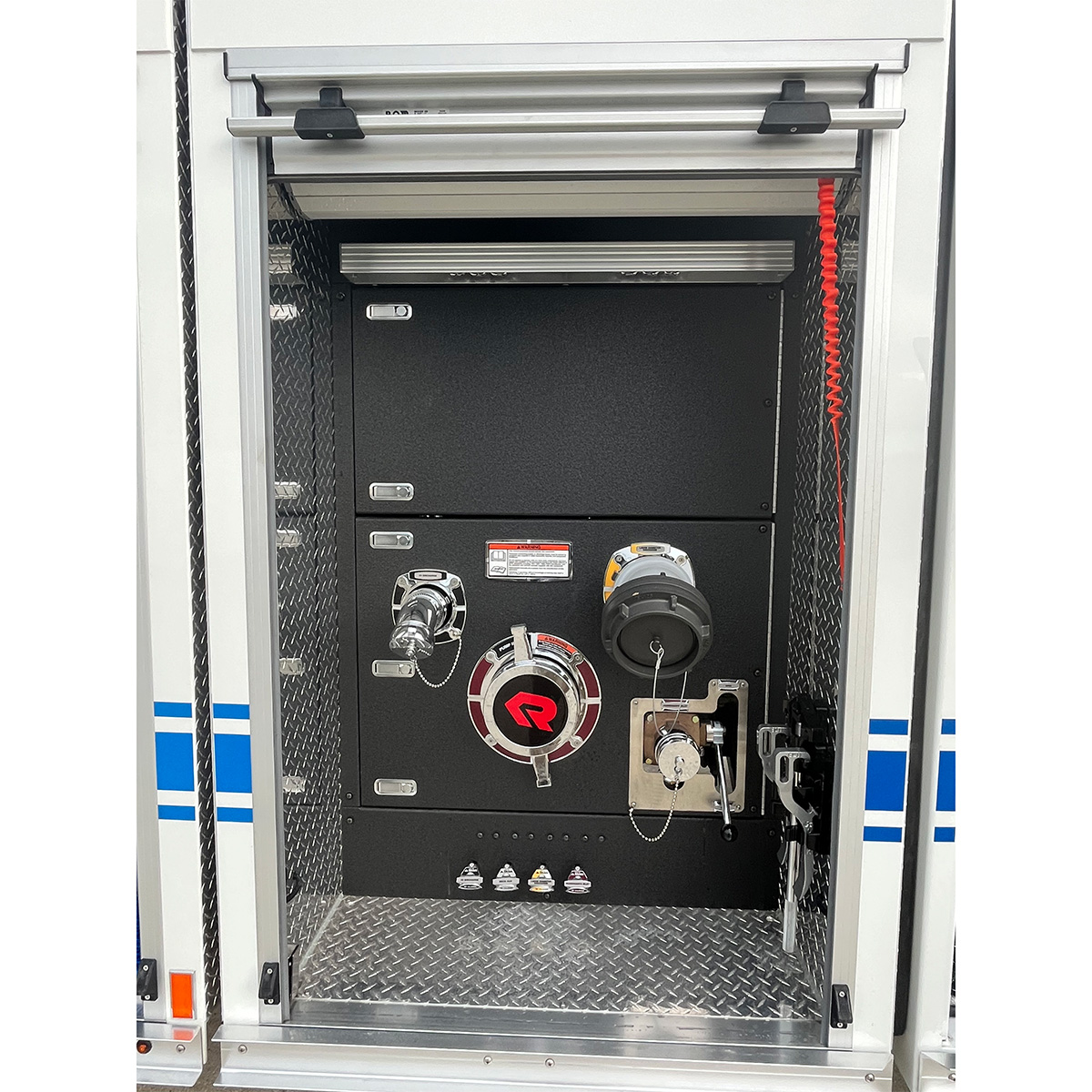

  • 2-1/2" Auxiliary Intake--Officer's Side
  • 1-1/2" Front Bumper Discharge
  • (2) 1-1/2" Speedlays Under Command Crew Seats
  • 1" Grass Line Discharge, Driver's Side
  • Air Horn Button and Air Outlet on Pump Panel
  • 2-1/2" Rear Direct Tank Fill
  • Aluminum Treadplate Hosebed Cover

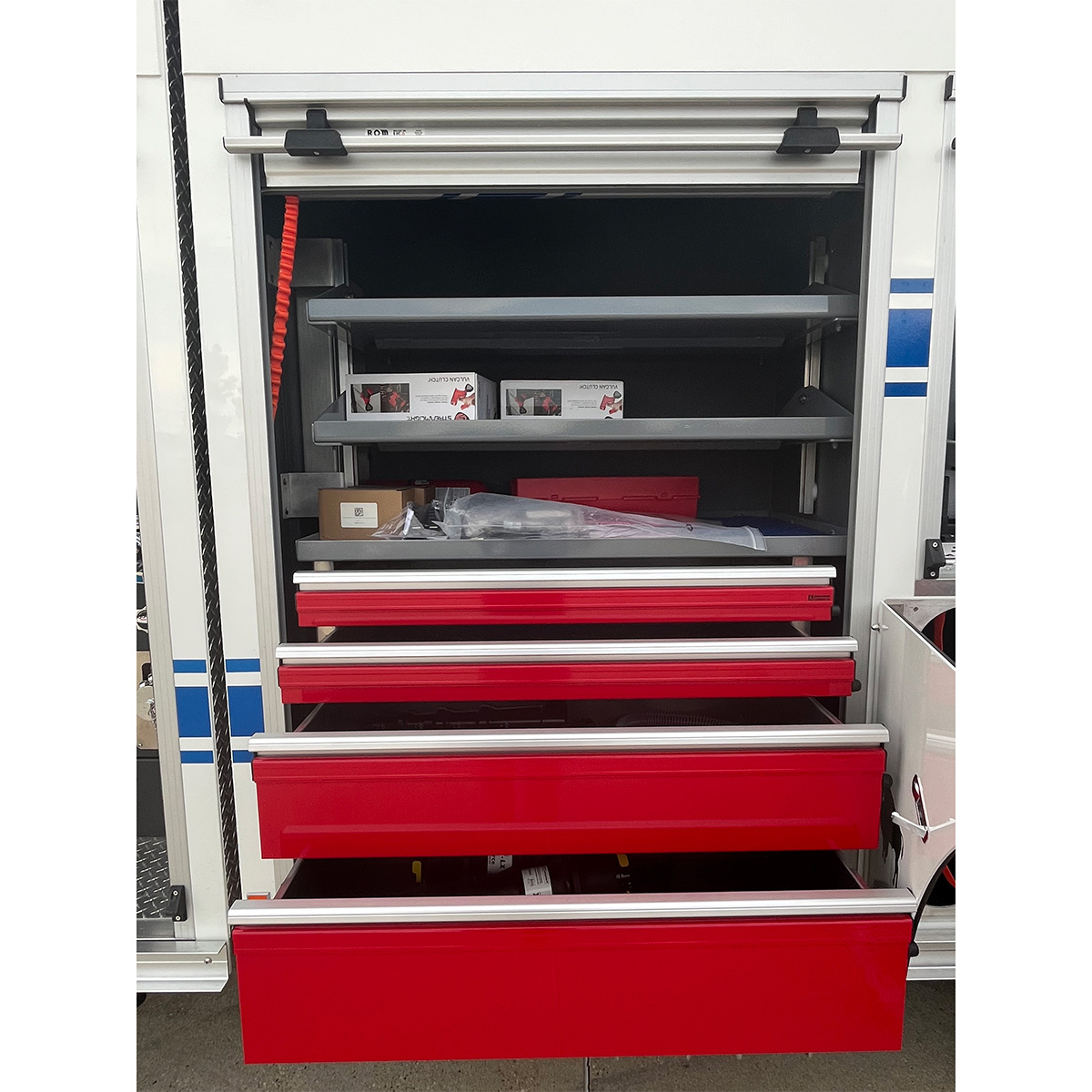

  • Four (4) Drawer Mobile Storage System

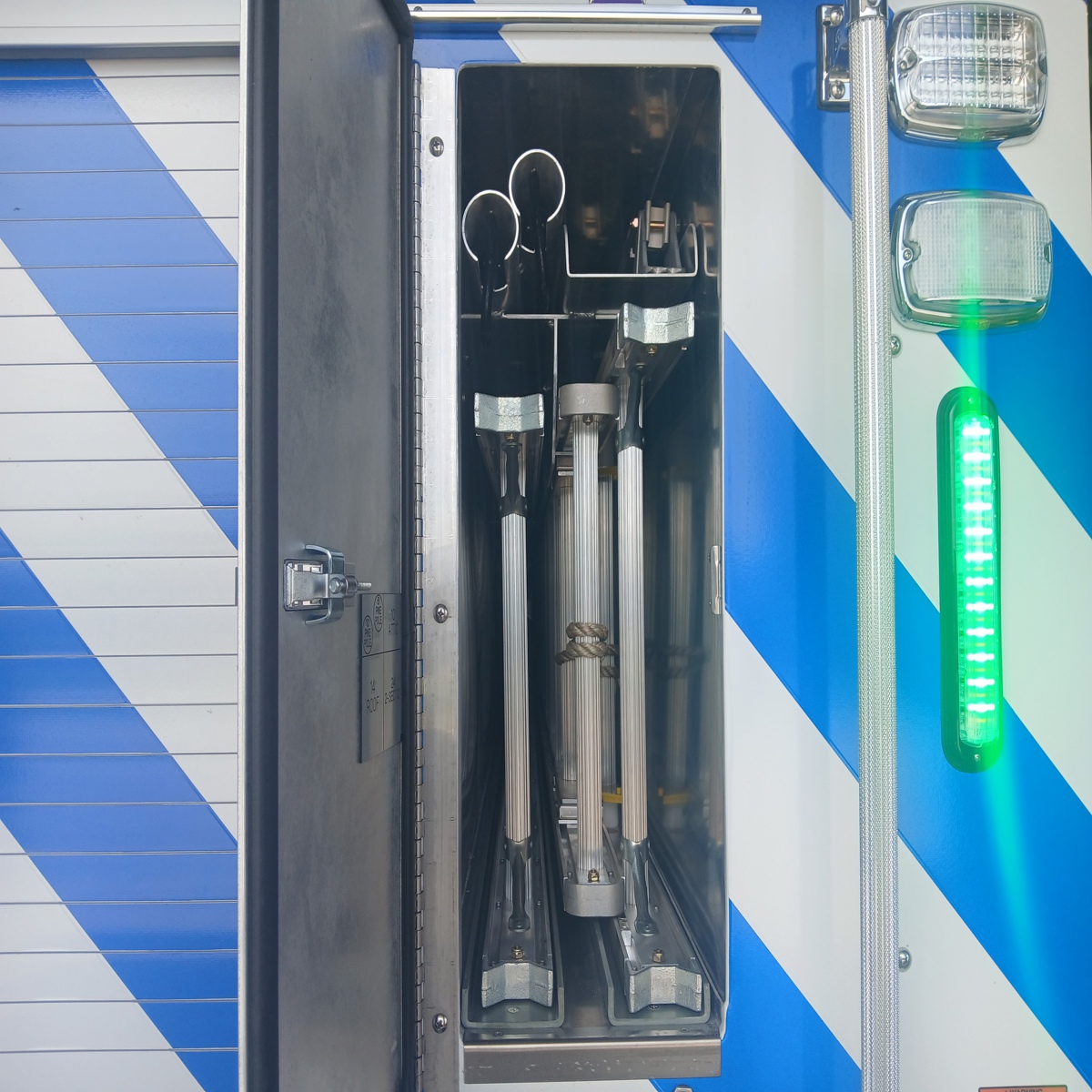

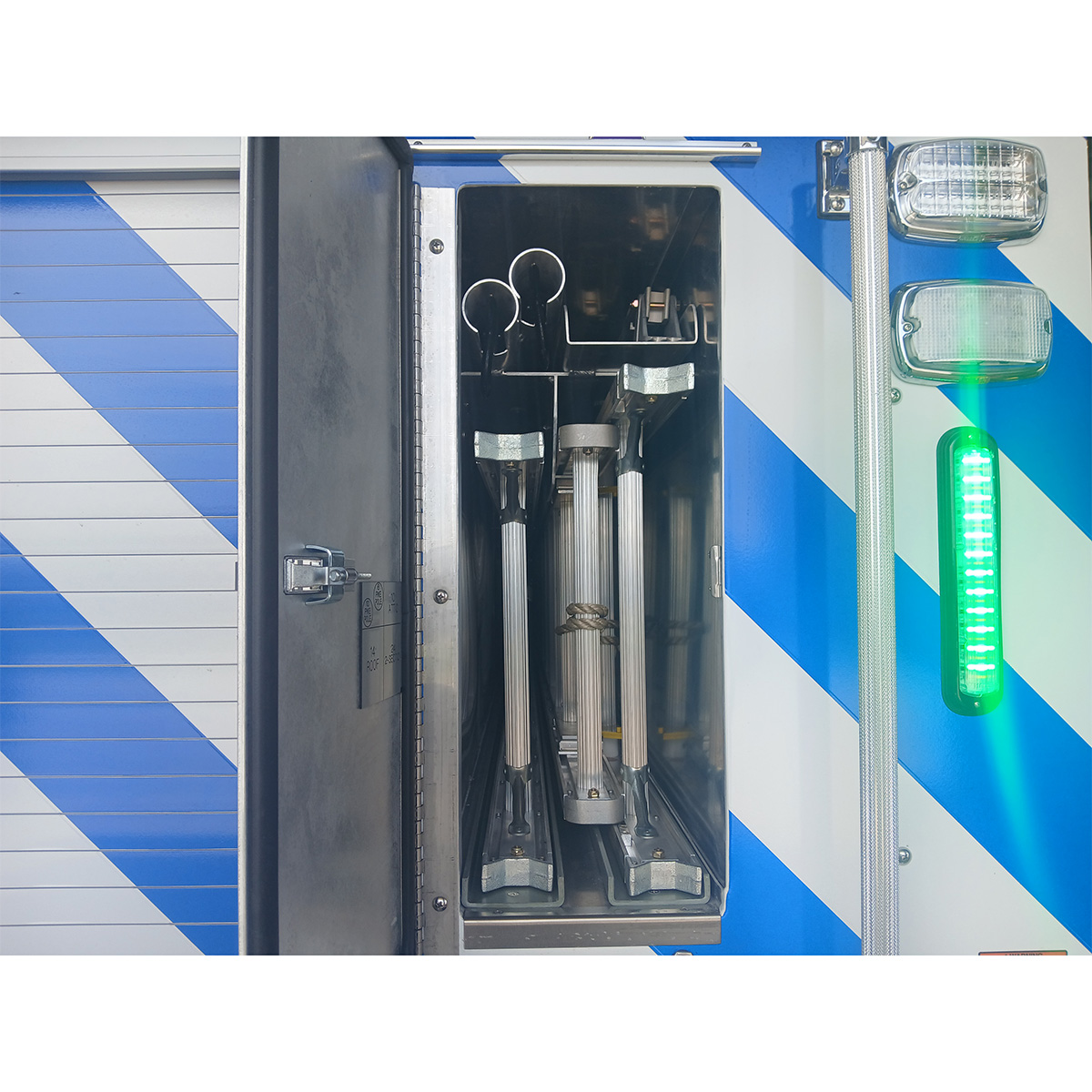

  • Internal Ladder, Pike Pole, and Suction Hose Storage

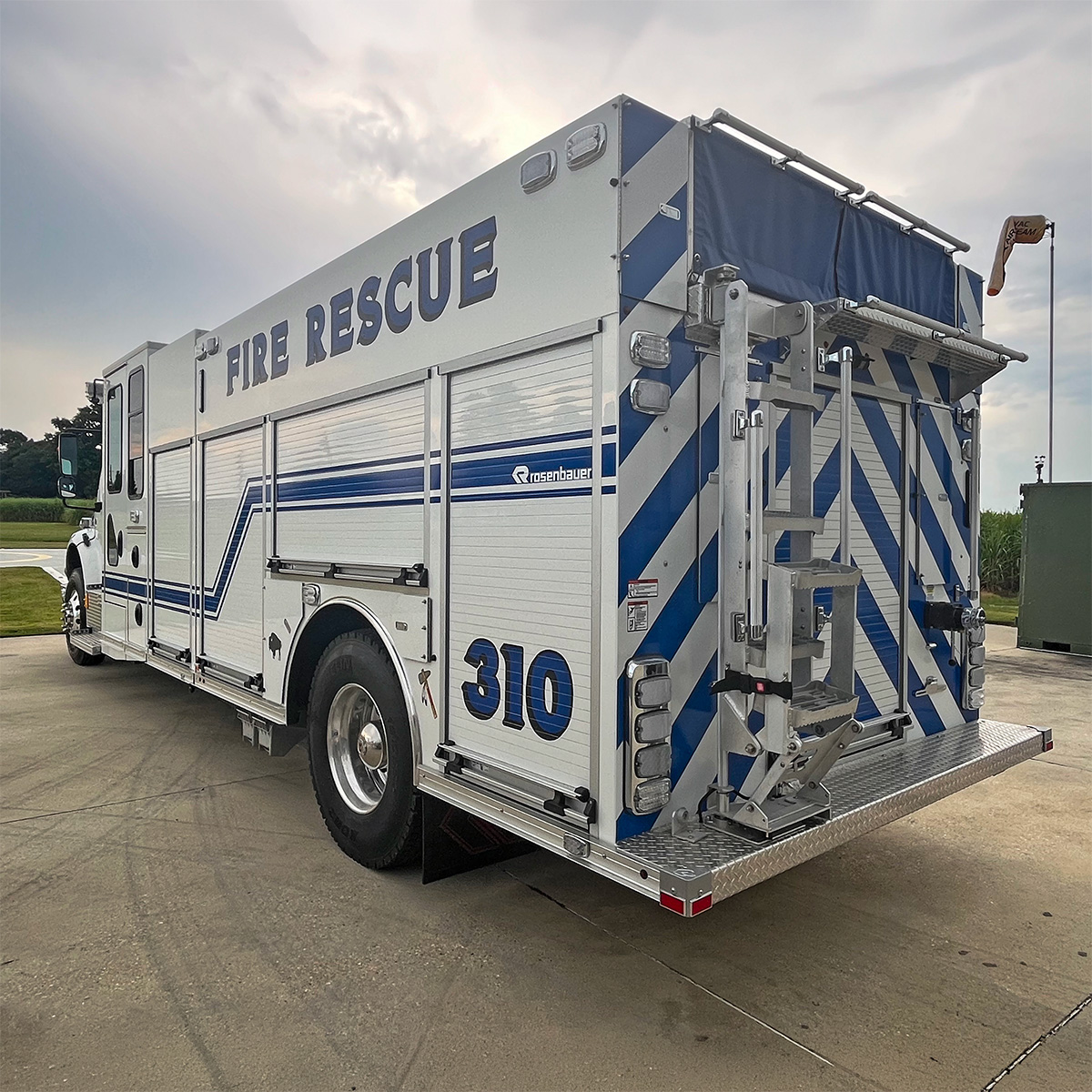

  • Rosenbauer EZ Climb Rear Access Ladder
  • Wheel Well Storage for Six (6) SCBA Spare Bottles and Two (2) Extinguishers
  • LineX Body Compartment Finish

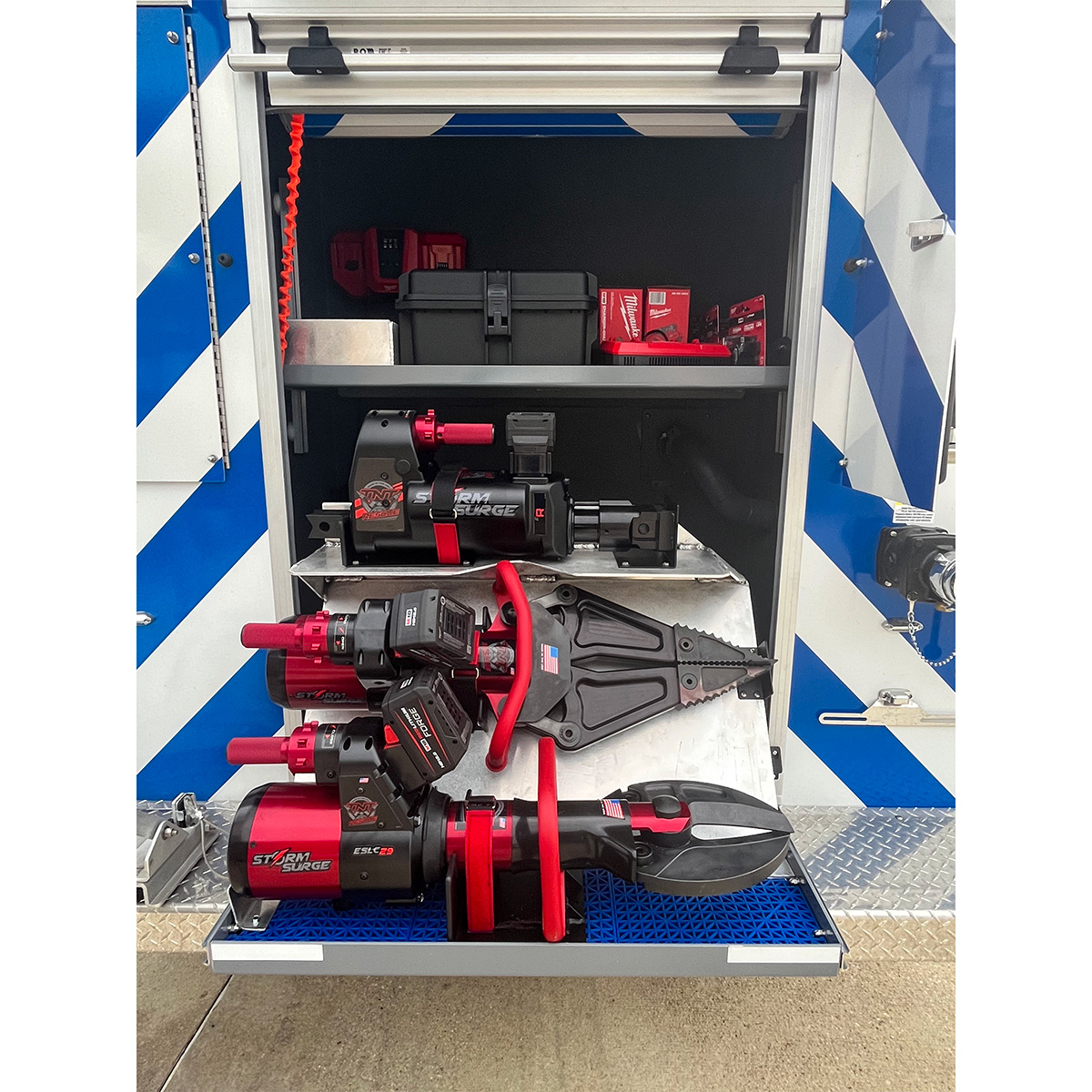

  • Custom Rescue Tool Mounting
  • Dual Sided Aluminum Swing Out Toolboard
Body

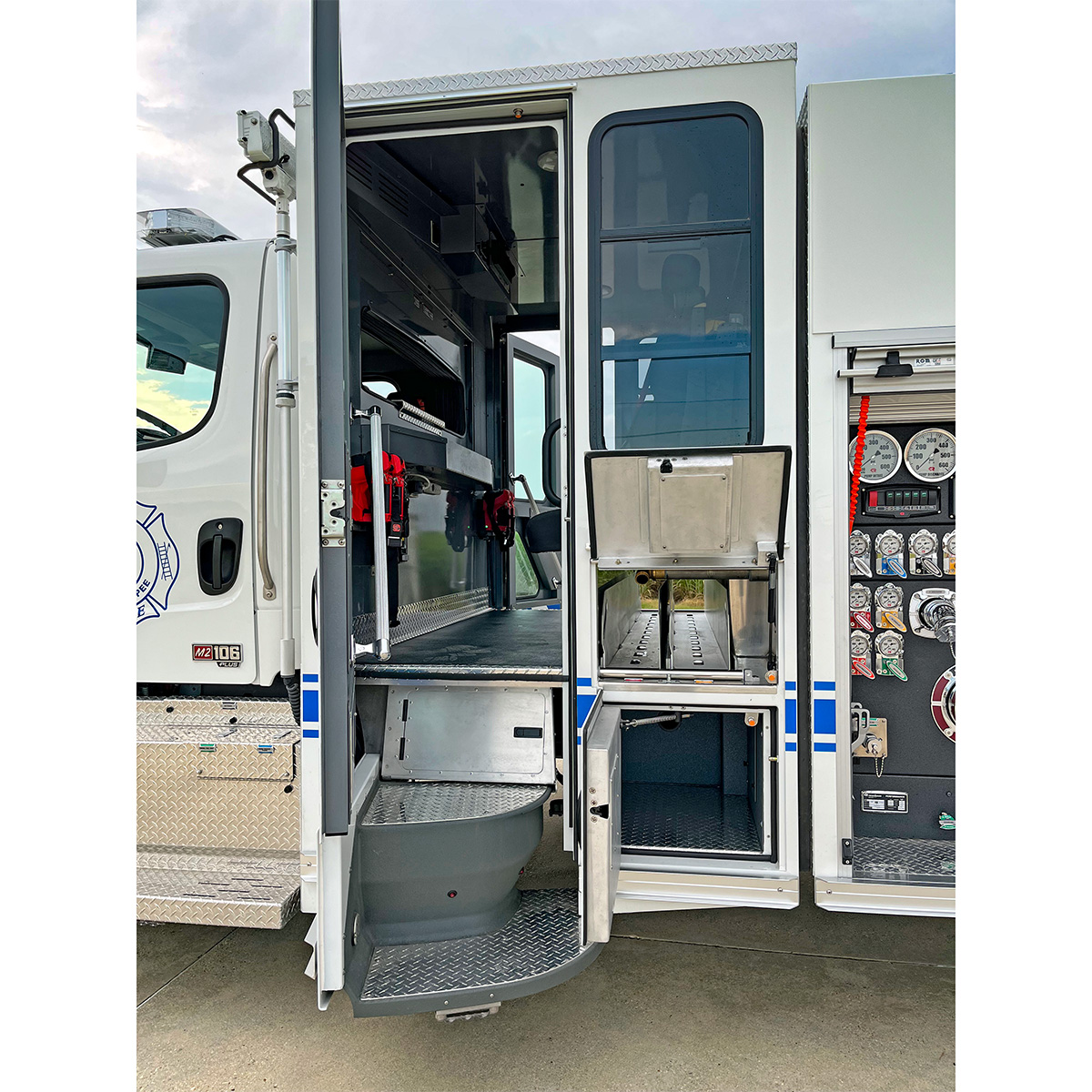

  • Rosenbauer SMART CAB Crew Module
  • --Red/White LED Strip Lighting in Module
  • --Module HVAC Unit (800 CFM/20,000 BTU (Heating)/27,000 BTU (Cooling)
  • --Egress Door, Each Side

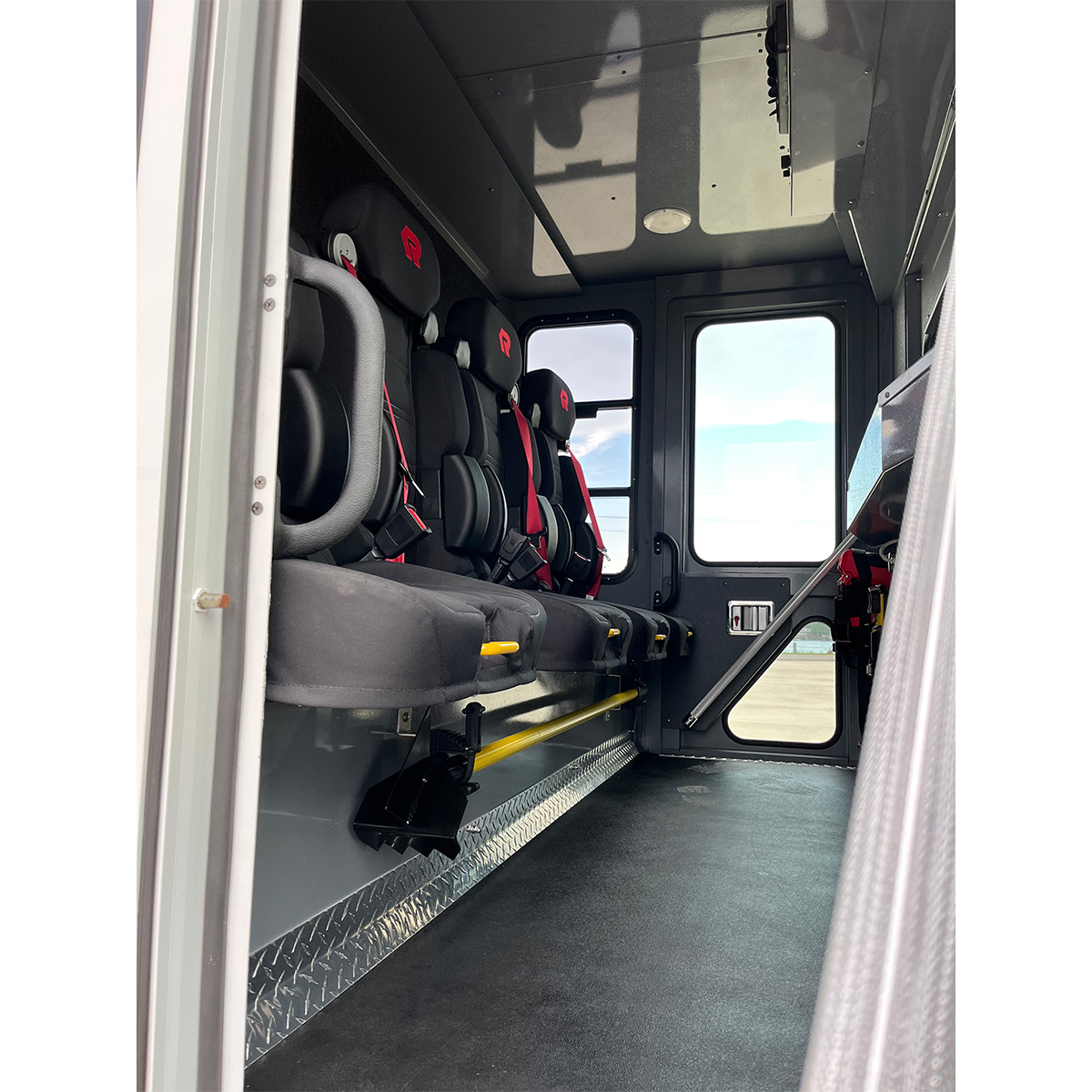

  • --Crew Cab SCBA Seating
  • --Talk Through Window from Cab with Storage Area
  • --Exterior Storage Compartments
  • Rosenbauer FX 1/8" Aluminum Body
  • Aluminum Treadplate Compartment Floors
Chassis
  • Freightliner M2 106+
  • Aluminum Wheels
Dimensions
  • Overall Length: 33'-6.01"
  • Overall Height: 9'-8"
  • Wheelbase: 262"
Electrical
  • Kussmaul Load Manager 2
  • Kussmaul Pump Plus Battery Charger/Compressor System with 20 Amp Super Auto Eject
  • 12V Dual USB Power Outlet, Rear Crew Cab Desk
  • 1800 Watt Inverter with Transfer Switch
  • 120V, 20 Amp Receptacles and Power Strip in Crew Module and Body Compartments
Engine
  • Cummins L9, 360 HP
Foam
  • Elkhart 95 GPM Foam Eductor System
  • 20 Gallon Foam Cell
Pump
  • Rosenbauer Model N Fire Pump
  • 1500 GPM
  • Single Stage, Midship
  • PTO Pump Shift with Pump and Roll Capability
  • Thermal Bypass Cooling System
  • Enclosed Pump House, Roll-Up Doors
Transmission
  • Allison 3000 EVS with PTO Provision
Water
  • 1000 Gallons
Schematic Drawing View Schematic Drawing
