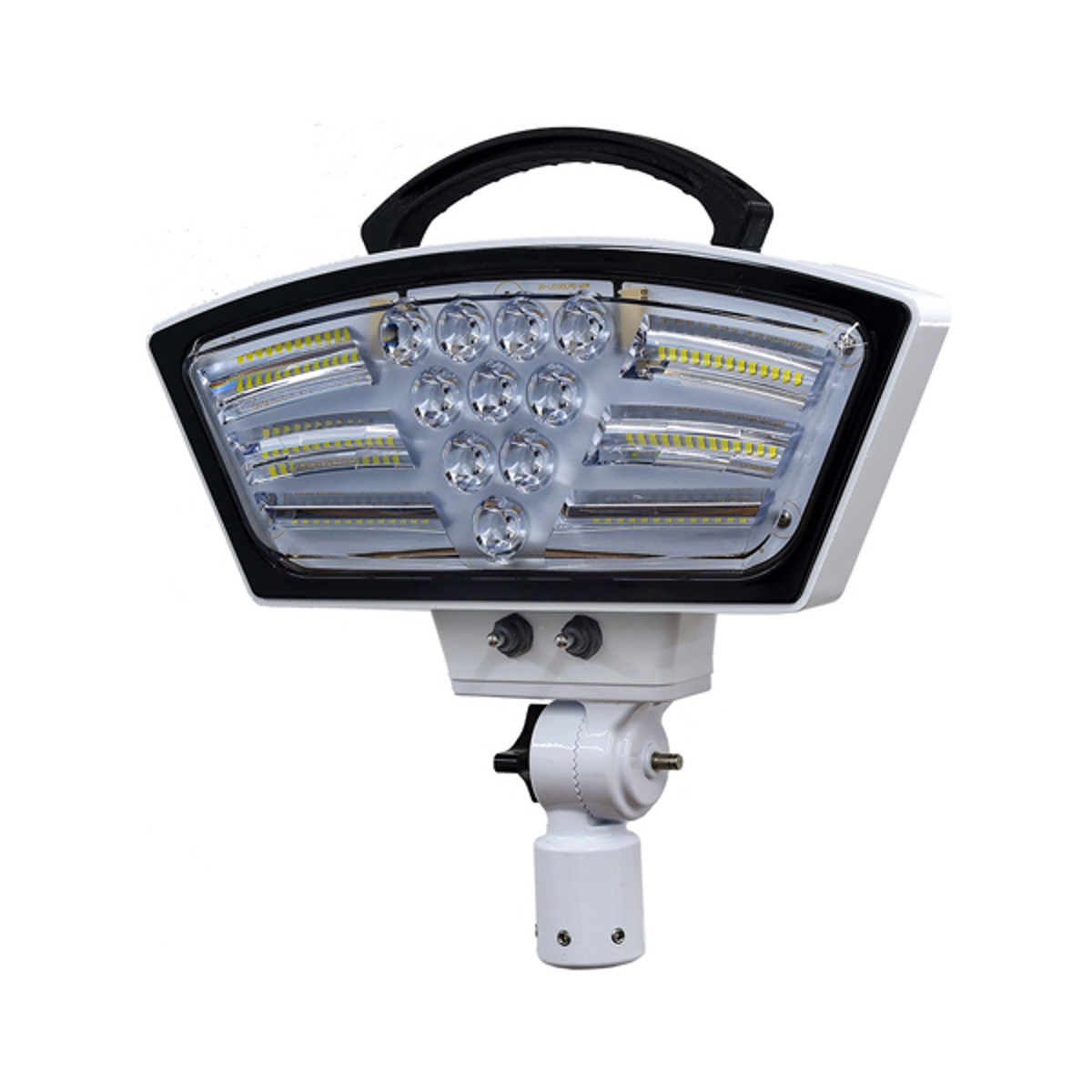

FRC Radiant MAX Scenelight AC 32K lm; SM; Psh/Up

FRC Radiant MAX Scenelight AC 32K lm; SM; Psh/Up (RDA530-K32)

Radiant MAX LED lampheads output an impressive 32,000 lumens of super bright white light in a variety of models.

The Radiant MAX LED lamphead generates a uniform flood and spot combination light pattern. This light pattern provides enhanced work area visibility as well as illuminates objects at a farther distance

Radiant MAX series LED lampheads can be ordered without a mount. An adjustable mounting arm allows the lamphead to pivot up and down. The arm will have a pole adapter for installing the lamphead onto a lighting fixture. The three wires for power extend out the bottom of the mounting arm.

Radiant MAX series LED lampheads are available with all FRC pole, top and fixed mounting configurations.

• New optic design utilizing a spot and flood combination to deliver light most effectively
• Mounting options include FRC poles, tripod, and fixed mounts
• Available in both 12/24V DC and 120/240V AC
• New robust arm and swivel
• • On/off switch
  • Control brightness
  • Control power consumption
  • Individually control:
    • Spot only for penetrating light
    • Flood only for ground illumination
    • Flood and spot for best overall scene coverage
  • Instant on at full intensity
  • Standard switch box with increased functionality



  Specifications:

  Dimensions	13.75" (349.25 mm) wide x 3.75 (95.25 mm) deep x 7.5 (190.5 mm) high
  Weight	AC - with arm & swivel 8.9 lbs (4 kg) DC - with arm & swivel 7.9 lbs (3.6 kg)
  Lumens	32,000 (RAW) / 28,000 (EFFECTIVE)
  Color Temperature	6500 Kelvin (Daylight)
  Voltage	12/24VDC (18 Amps/9 Amps) 120/240 VAC (1.7 Amps/0.9 Amps)
  LED Distribution	10 Spot and 78 Flood
  Power	220W
  Environment Protection	IP68
  Max. Operating Ambient Temperature	115° F (45° C) without any deration of light output.
