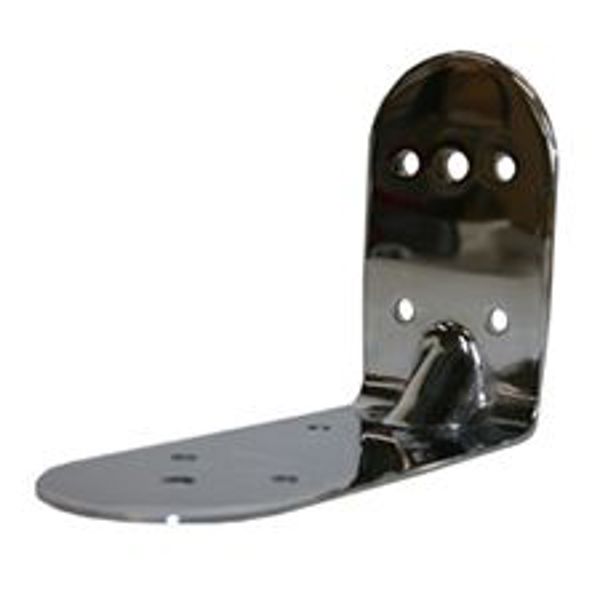

Zico Mount Nozzle Cup Bracket, Chrome

Bracket - chrome plated for neoprene cup mounts. For mounting on a vertical surface with top projection: Bolt short 5" side of bracket to flat vertical mounting surface using four bolts 1/4" dia., lock washers and nuts (not included). Insert bolt of nozzle cup mount into farthest center hole in long 6-7/8" side of bracket and tighten securely with lock washer and nut provided. For mounting on flat vertical surface: Bolt long 6-7/8" side of bracket to flat vertical mounting surface using same size bolts, lock washers and nuts (not included) as above. Insert bolt of nozzle cup into center hole of the farthest 3 holes of the short 5" horizontal side of the bracket, and tighten securely with lock washer and nut provided.

Features

• Bracket - chrome plated
