CMC SL FastLink Anchor Strap

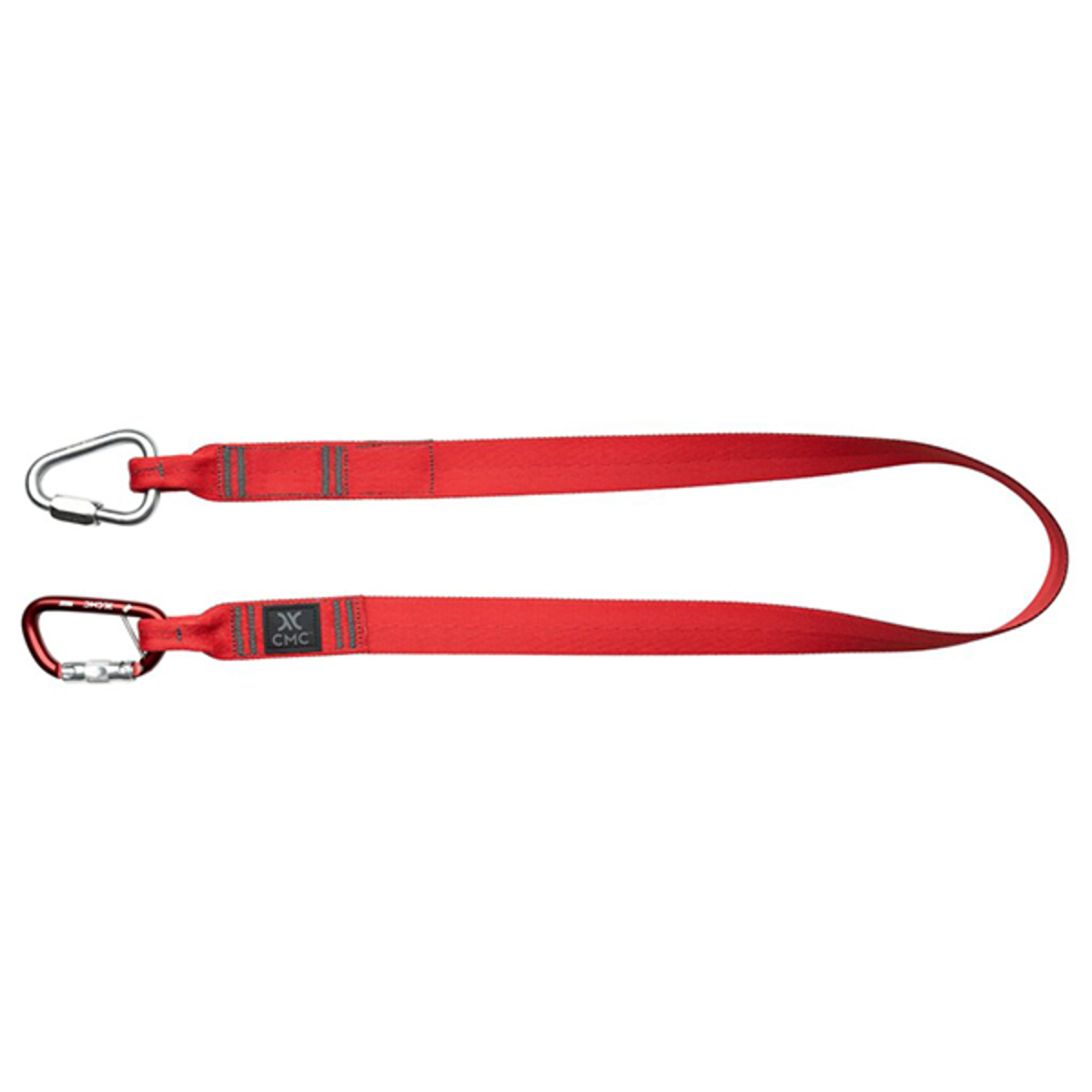

CMC SL FastLink Anchor Strap (201072-XX)
_
The fastest connecting anchor strap solution available! Now offered in a lightweight, compact, single-layer design.

FastLink Anchor Straps are rapidly installed by wrapping around the anchor point and clipping the integrated ProTech™ Auto-Lock Carabiner into the included 12 mm Delta Quick Link. The Quick Link then serves as a single connection point for the anchor system, mitigating the risk of tri-axial or cross-loading that may occur in straps using D-rings and carabiners. This quick, two-step assembly combines the speed of a carabiner with the multi-directional strength of a quick link. The result is a NFPA General Use strap that makes anchor-building safer and more efficient, improving the foundation upon which technical rope systems are built.

The SL FastLink Anchor Strap is a single layer of latex-coated polyester webbing. Lightweight and compact, the SL model is easy to pack, carry, and deploy. It is classified to NFPA General Use for Basket (U) and End-to-End, providing a high breaking strength to withstand heavy loads on the system. Compared to nylon, the polyester webbing is more resistant to UV and water, and has less elongation. The webbing also stands out due to its bright red color, selected for high visibility, and its contrasting gray stitching, which aids inspection.

Supple and pliable, the SL FastLink Anchor Strap bends easily around structures and feeds smoothly through metal grating. It combines NFPA General Use strength with a compact, smooth-handling design that excels in challenging conditions. Consider pairing the SL models with CMC’s Anchor Sleeves and Edge Guards for increased versatility, durability, and lifetime performance.

Features:

FastLink Anchor Straps are rapidly installed by clipping carabiner to quick link
Includes ProTech™ Auto-Locking Carabiner and 12 mm Delta Quick Link
Quick Link functions as single focal point, mitigating tri-axial and cross-loading
Single-layer design is compact and lightweight – easy to pack, carry, and deploy
Steel and aluminum hardware, and weather-resistant polyester webbing
Polyester is more resistant to UV and water, and has less elongation than nylon
Supple and pliable – bends easily around structures and metal grating
Bright red for high visibility with contrasting gray stitching to aid inspection
Combines with anchor sleeves and edge guards to add versatility & durability
Classified to NFPA General Use for Basket (U) and End-to-End
Made in the USA

Strength Specifications for All Sizes:

Basket (U) Configuration: 45.8 kN (10,296 lbf)
Choker (Girth Hitch) Configuration: Not Applicable
End-to-End Configuration: 24.8 kN (5,575 lbf)
