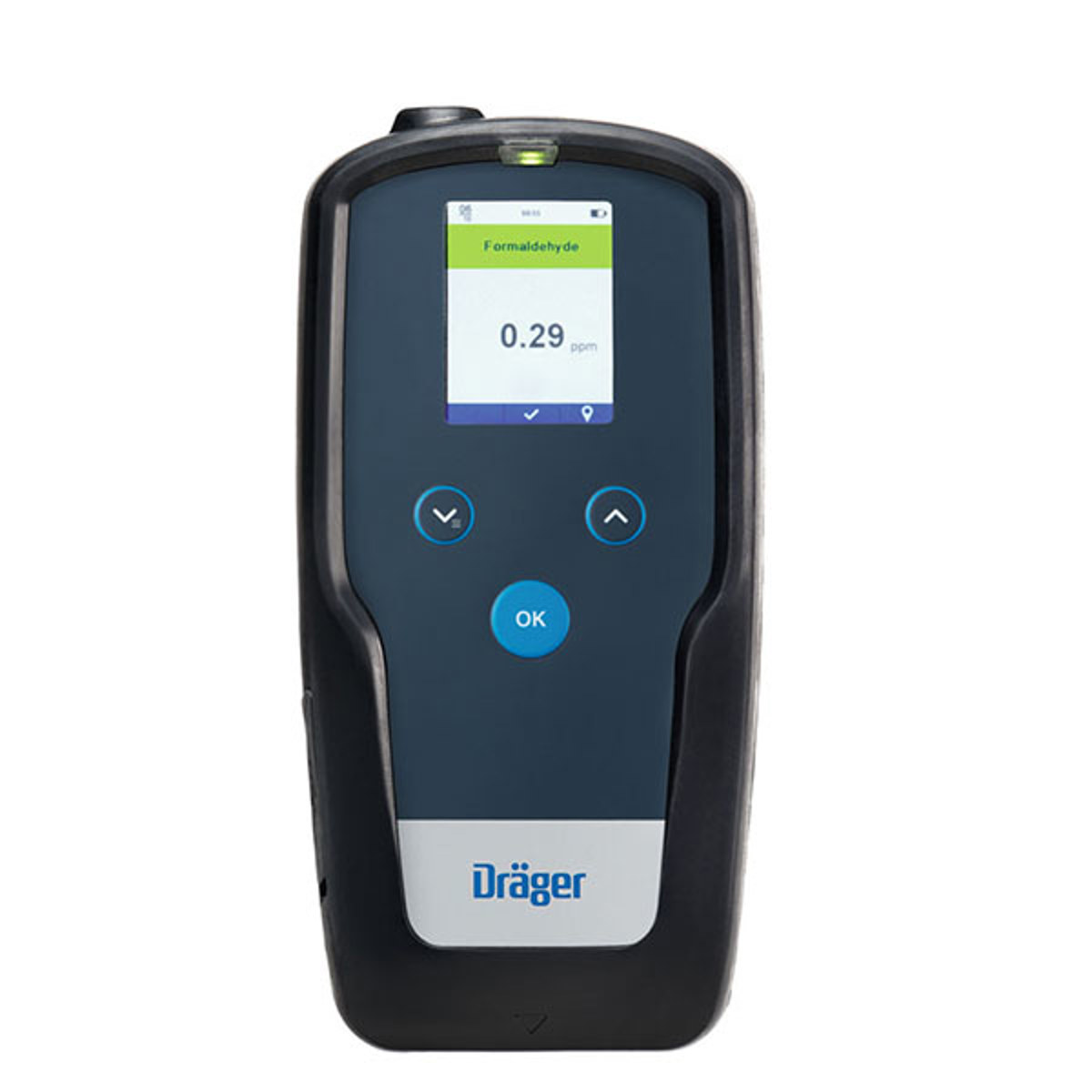

Draeger X-Act 7000 Multi Gas Detector

Draeger X-Act 7000 Multi Gas Detector (8610800)

_

The innovative Draeger X-act 7000 analysis system consists of Draeger MicroTubes and an opto-electronic analysis device that lets you precisely measure gases in the low ppb range. It gives you precise results right on site, replacing slow, expensive lab analyses. It's extremely easy to use: insert the Draeger MicroTubes, start measuring, then read out the test result.

_

• Precise gas measurment in the lower ppb range
• Based on colorimetric chemical sensor technology
• All calibration information on the RFID
• Benzene measurement starting at 1 ppb
• Ten measurements per MicroTube

_

Concentrations of hazardous substances in ambient workplace air must never exceed the defined limits. Monitoring these sometimes very low concentration levels is a responsible task. The Draeger X-act 7000 in combination with Draeger MicroTubes is focused on measuring carcinogenic and toxic substances in the low ppb range. This sensitive testing system is based on colorimetric chemical sensors capable of replacing conventional laboratory analysis and providing precise results right on site. This saves time and money.

_

The substance-specific reactive layers and multiple pre-layers in the Draeger MicroTubes allow for selective gas testing. The various layers serve as a filter. During testing, they filter out other substances that occur in the workplace so that only the target substance is reflected in the test result. This significantly reduces cross-sensitivities and the number of false-positive test results.

_

The RFID tags applied to the Draeger MicroTubes contain all the calibration data that apply throughout their normal lifespan of one year. This eliminates the need for lengthy function tests and manual calibration. Because it works on the basis of mass-flow measurement, air pressure fluctuations have no influence on the device. Any possible temperature or humidity influences are already accounted for during the factory calibration. The analyzer is explosion-proof and certified under ATEX and CSA. The system is also dust- and splash-resistant in accordance with IP54. It also meets the requirements for electromagnetic compatibility under EN 61326-1.
